OZNO2_1
Measurement Range:
0-10 ppm
Minimum Detection Limit:
0.01 ppm
Sensor Life:
2 Years
Working Principle:
Electrochemical Sensing
Drift:
±20 ppb / Year
Nitrogen Dioxide (NO2) Sensor Module
For PPB Level Low Concentration NO2 Monitoring
Oizom offers several Nitrogen dioxide (NO2) sensor modules for monitoring different levels of NO2, depending on the need. Our Nitrogen Dioxide Sensor module accurately measures NO2 levels in ambient conditions, detecting concentrations in ppb/ppm. This module monitors nitrogen dioxide in real-time. This sensor is integrated into a metal casing along with ultra-low-noise support electronics, which makes it compact and reliable. This allows accurate gas detection even at very low concentrations in the atmosphere. This sensor works on the electrochemical principle to measure environmental air quality.
.webp&w=3840&q=75)
.webp&w=3840&q=75)

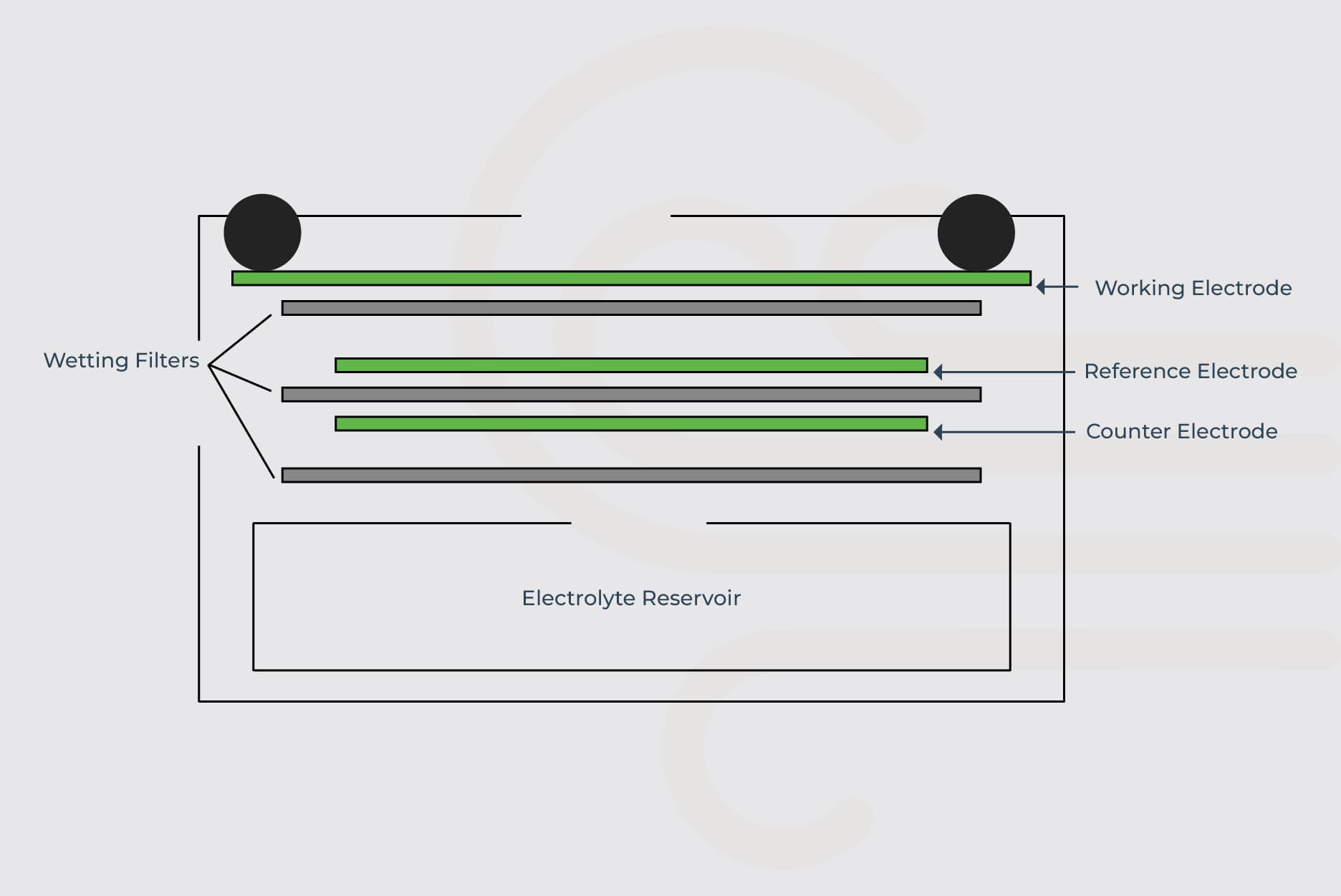

Measurement Principle
The Nitrogen Dioxide (NO₂) sensor uses electrochemical sensing technology to detect and measure NO₂ concentrations in ambient air. Nitrogen dioxide gas diffuses into the sensor and undergoes an electrochemical reduction reaction at the sensing electrode, generating an electrical current proportional to the concentration of NO₂ present. This signal is measured and converted into concentration values, enabling accurate real-time monitoring of nitrogen dioxide levels.
Specification
OZNO2_2
Measurement Range:
0-100 ppm
Minimum Detection Limit:
0.2 ppm
Sensor Life:
2 Years
Working Principle:
Electrochemical Sensing
Drift:
< 2% / Month
OZNO2_3
Measurement Range:
0-500 ppm
Minimum Detection Limit:
0.5 ppm
Sensor Life:
2 Years
Working Principle:
Electrochemical Sensing
Drift:
< 2% / Month
