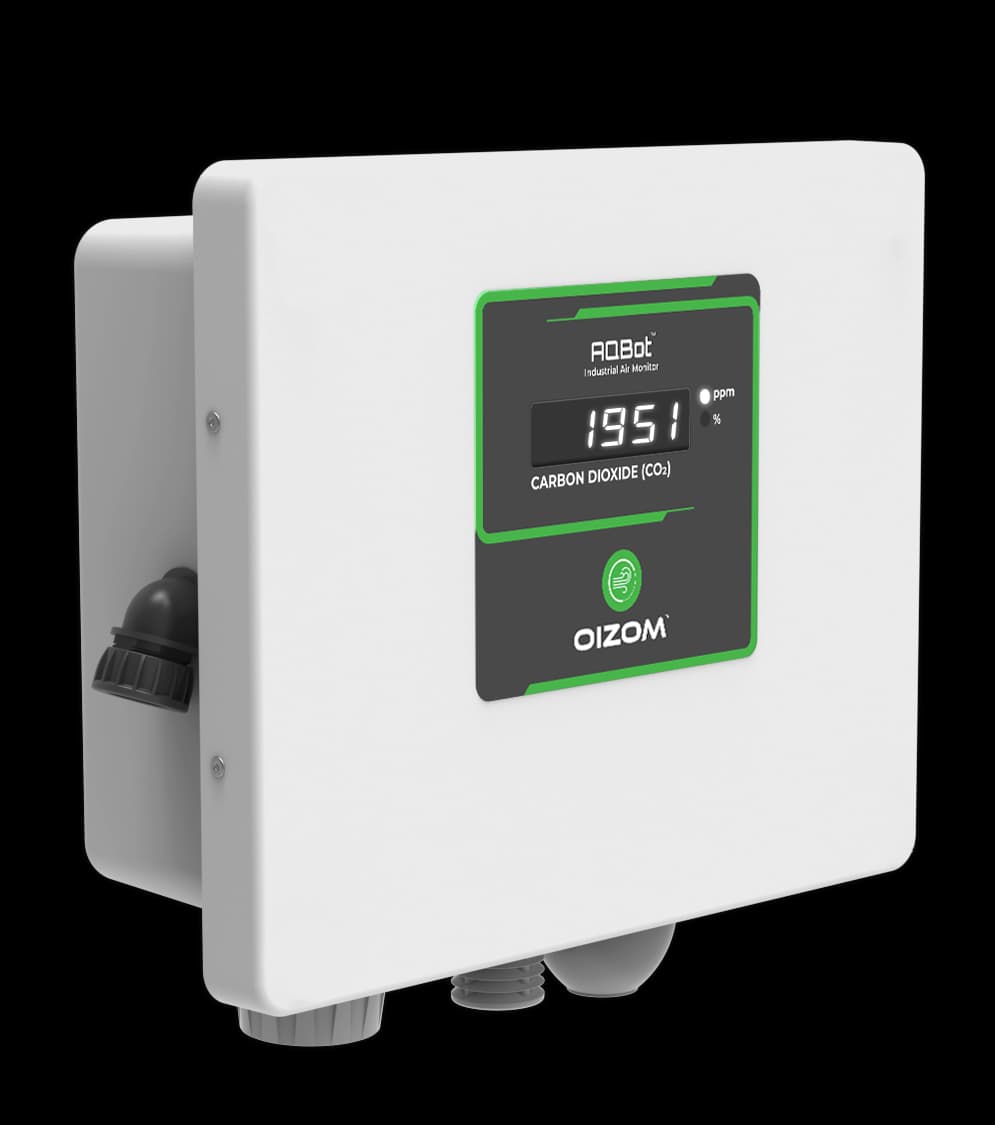

AQBot CO2 Monitor
Single Point Continuous CO2 Monitor
The AQBot CO2 is a robust CO2 Gas Monitor that can measure Carbon Dioxide parameters in the air. This CO2 gas detector uses NDIR Sensing technology to measure total CO2 concentration in the air. The monitor is equipped with a CO2 sensor module. The sensor module is enclosed in the IP65 rugged composite enclosure to protect from harsh weather.
The gas detector enclosure is NEMA 4X approved to last long in harsh industrial environments. It comes with an on-device display to check the concentration of the CO2 without being dependent on any external display. This fixed gas detector comes with an optional on-device Alarm siren and strobe-light for quick action in case of any atmospheric hazard. It provides an early warning to potential toxic gas exposure.
The AQBot CO2 monitor can accurately monitor CO2 gas concentrations in real-time. This device can integrate relevant CO2 modules as per the application requirement.
The fixed CO2 monitor is lightweight and easy to install on the wall or pole with versatile mounting arrangements. It can easily integrate with existing building monitoring or plant control systems infrastructure. The CO2 module is easy to replace or calibrate by sending the device back to Oizom or our partner facility. The AQBot is designed for easy and inexpensive maintenance.
The single-point continuous gas monitoring system AQBOT can communicate over multiple communication protocols. Multiple CO2 monitor networks can receive output signals to a central point after configuration. Also, it has a built-in relay module, through which the user can set up a relevant threshold to trigger the Alarming system. Thresholds for the alarm are customizable from the Air Quality Software, which comes with AQBot CO2 monitor.
The AQBot CO2 monitor is ideal for continuous monitoring of CO2 emissions. For instance:
Manufacturing and processing, Refining, Petrochemical, Chemical, Pharmaceutical, Pulp and paper, Industrial painting and coating, Solvent recovery, Disinfection, Wastewater treatment plant, Effluent treatment plant, Industrial hygiene and safety and, Risk assessment
- Quick sensing for threshold-based alerts
- Highly accurate data to detect low ppb concentrations
- Robust built to sustain harsh industrial conditions
- Easy data integrations to match industry standards
- Effortless installations with versatile mounting arrangement
- Data transmissions through multiple channels
- Inbuilt relay operation for automation
- Real-time data display for keeping a check
- Optional siren & strobe for audio & visual alerts
- On Device Display: Built-in display module to check on-site concentration
- Ultimate Durability: NEMA Certified industrial-grade enclosure made of high-grade engineering composite polymers
- Weatherproof: IP65 grade enclosure for endurance against harsh environmental conditions
- Accurate measurement: Accurate Nitric Oxide gas measurement with Electrochemical sensing technology
- Compact: Light-weight and the compact system can be easily installed on any wall, pole, or structure
- Real-Time Data: Continuous monitoring and real-time data transfer at configurable intervals
- Built-in Relay: Built-in relay for better process automation
- Wired Communications: Supports all industry-standard output signals like Modbus, Canbus, RS-485, RS-283
- Wireless Communications: Supports a wide range of wireless connectivity options like GSM / WiFi / LoRa / NBIoT
- Over-The-Air Update: Automatically upgradeable from a central server without any onsite visit (available for wireless connectivity)
Strobe
Siren
Carbon dioxide works on NDIR technology. CO2 absorbs infrared radiation at a particular frequency. When the gas sample is exposed to infrared radiation, the infrared radiation absorbed by the CO2 molecules present in the gas sample is measured by the detector in a non-dispersive photometer.
MODBUS: RS283 and RS485 based industrial grade communication
Ethernet: Wired local area network deployment capability for secure data transfer
GSM/GPRS: Second-generation digital cellular network for global coverage
Lora: Low Range, Low Power consumption transmission in sub-gigahertz radio frequency bands like 433 MHZ, 868 Mhz & 915 Mhz.
Sigfox: Wide-reach & ultra-narrowband transmission for extensive area coverage with up to 140 uplink messages a day, 12 octet payload, and 100 bytes/second data rate.
LTE: Standard wireless broadband communication for mobile devices and data terminals
NB-IoT: High connection density capability with single Narrow-Band of 200kHz and enhanced Machine-Type communication LTE.
WiFi: Wireless Local Area network deployment functionality based on the IEEE 802.11 standard.
Product Applications
The platform has essential features like
CO2 Data Overview
Micro-analysis Dashboard
Historical Data Analytics
CO2 Report
Smart Alerts
Historical Data-set Download
Product Applications
