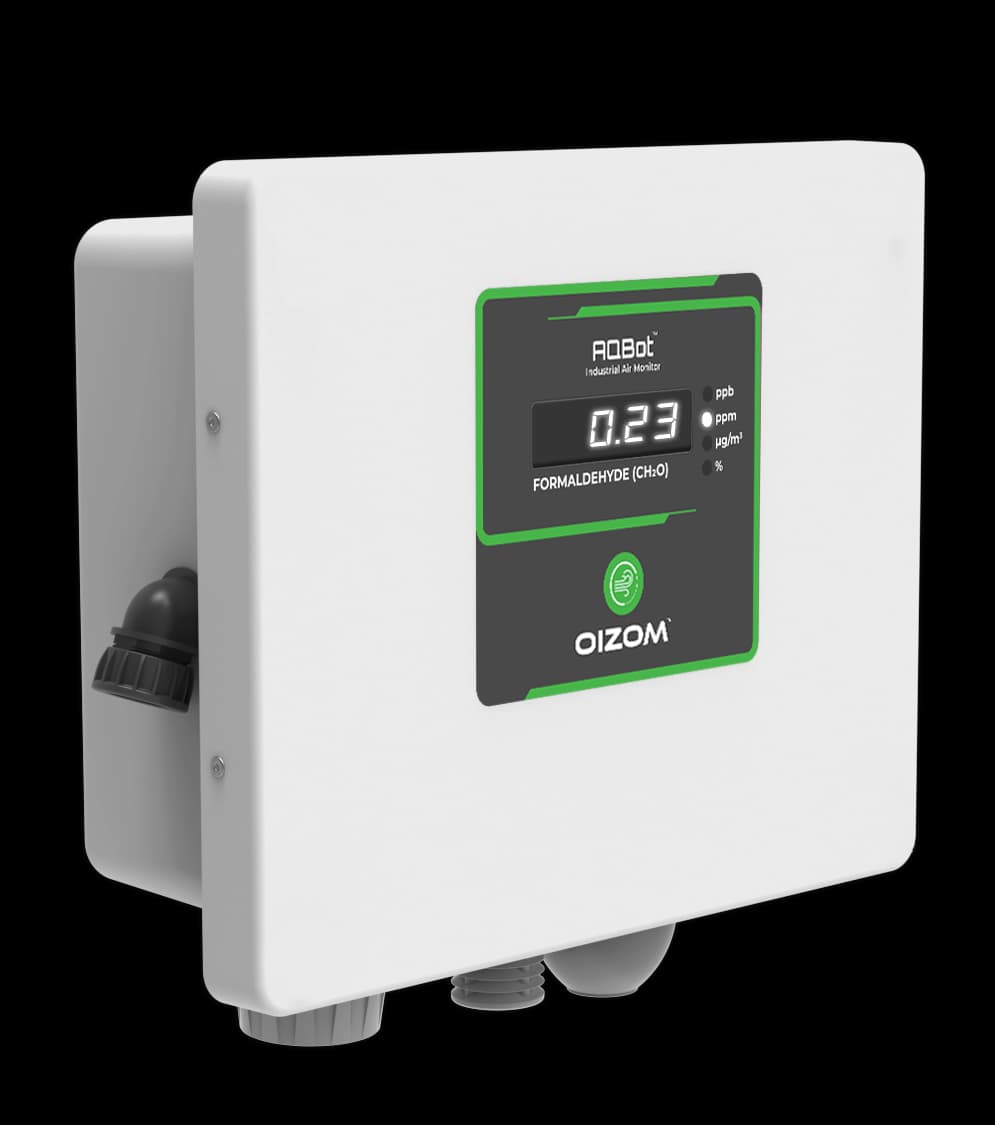

AQBot CH2O Monitor
Single Point Continuous CH2O Monitor
The AQBot CH2O is a robust CH2O Gas Monitor that can measure formaldehyde levels in the air. This CH2O gas detector uses electrochemical sensing technology to measure CH2O concentration in the air. The industrial formaldehyde monitor is equipped with an electrochemical sensor. This sensor module is enclosed in the IP65 rugged composite enclosure to protect from harsh weather.
The AQBot enclosure is NEMA 4X approved to last long in harsh industrial environments. It comes with an on-device display to check CH2O concentration without being dependent on any external display. This fixed formaldehyde gas detector comes with an optional on-device alarm siren and strobe-light for quick action in case of any atmospheric hazard. It provides an early warning to potential toxic gas exposure.
The AQBot CH2O monitor can accurately monitor CH2O gas concentrations in real-time. This industrial air quality monitor can integrate relevant CH2O sensor modules as per the application requirement.
This industrial formaldehyde monitor is lightweight and easy to install with versatile mounting arrangements on the wall or pole. It can easily integrate with existing building monitoring or plant control systems infrastructure.
The electrochemical CH2O sensing module can easily be replaceable. The operator can also calibrate by sending the device back to Oizom or our partner facility.
The single-point continuous gas monitoring system AQBOT can communicate over multiple communication protocols. Multiple CH2O monitor networks can receive output signals to a central point after configuration. Also, it has a built-in relay module, through which the user can set up a relevant threshold to trigger the Alarming system. The AQBot comes with pre-set threshold values for alarm. However, users can customize it from the air monitoring software – Envizom.
- Quick sensing for threshold-based alerts
- Highly accurate data to detect low ppb concentrations
- Robust built to sustain harsh industrial conditions
- Easy data integrations to match industry standards
- Effortless installations with versatile mounting arrangement
- Data transmissions through multiple channels
- Inbuilt relay operation for automation
- Real-time data display for keeping a check
- Optional siren & strobe for audio & visual alerts
- On Device Display: Built-in display module to check on-site concentration
- Ultimate Durability: NEMA Certified industrial-grade enclosure made of high-grade engineering composite polymers
- Weatherproof: IP65 grade enclosure for endurance against harsh environmental conditions
- Accurate measurement: Accurate Formaldehyde gas measurement with Electrochemical sensing technology
- Compact: Light-weight and the compact system can be easily installed on any wall, pole, or structure
- Real-Time Data: Continuous monitoring and real-time data transfer at configurable intervals
- Built-in Relay: Built-in relay for better process automation
- Wired Communications: Supports all industry-standard output signals like Modbus, Canbus, RS-485, RS-283
- Wireless Communications: Supports a wide range of wireless connectivity options like GSM / WiFi / LoRa / NBIoT
- Over-The-Air Update: Automatically upgradeable from a central server without any onsite visit (available for wireless connectivity)
Strobe
Siren
Power Supply (SMPS)
Our sensing technology in the AQBot CH2O monitor works on the proven working principle of electrochemical sensing that operates based on the diffusion of CH2O gas into the sensor which results in the production of an electrical signal proportional to the CH2O concentration. It allows accurate and reliable measurement of even low concentrations of formaldehyde, which is essential in CH2O monitoring in the ambient air.
- MODBUS: RS283 and RS485 based industrial grade communication
- Ethernet: Wired local area network deployment capability for secure data transfer
- GSM/GPRS: Second-generation digital cellular network for global coverage
- Lora: Low Range, Low Power consumption transmission in sub-gigahertz radio frequency bands like 433 MHZ, 868 Mhz & 915 Mhz.
- Sigfox: Wide-reach & ultra-narrowband transmission for extensive area coverage with up to 140 uplink messages a day, 12 octet payload, and 100 bytes/second data rate.
- LTE: Standard wireless broadband communication for mobile devices and data terminals
- NB-IoT: High connection density capability with single Narrow-Band of 200kHz and enhanced Machine-Type communication LTE.
- WiFi: Wireless Local Area network deployment functionality based on the IEEE 802.11 standard.
The platform has essential features like
CH2O Data Overview
Micro-analysis Dashboard
Historical Data Analytics
CH2O Report
Smart Alerts
Historical Data-set Download
Product Applications
Do you know you can fully customize your air quality monitoring system with Oizom?
Schedule a call with our team of experts and get a customised solution for your air quality monitoring requirement.
