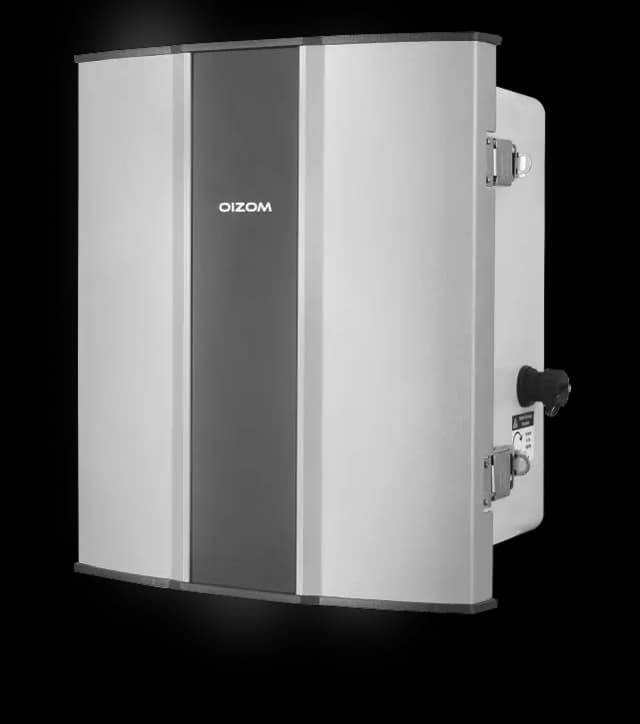

Dust Monitoring System

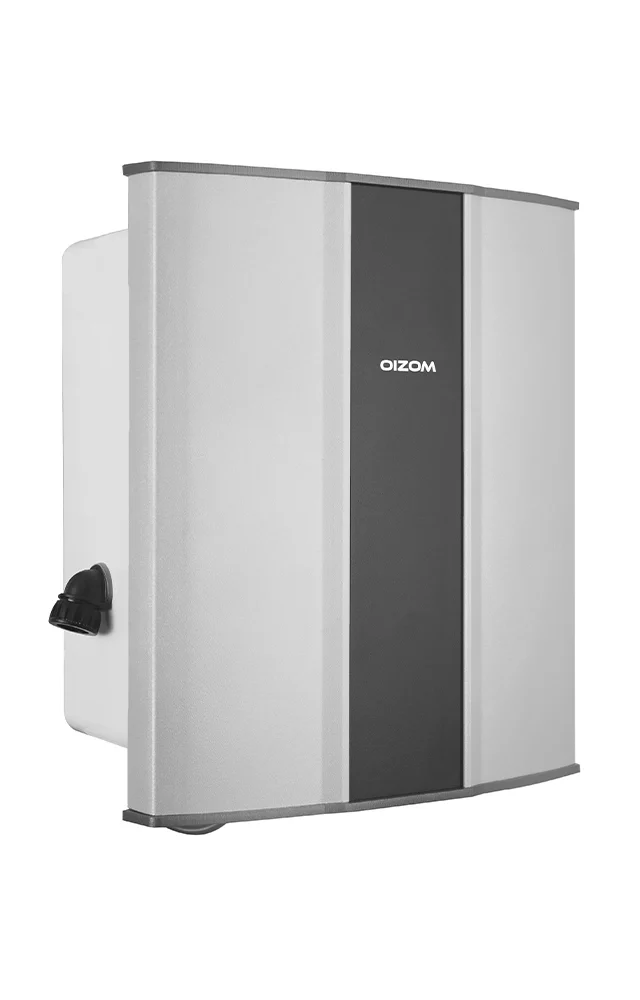

Dustroid
Dustroid is a continuous Air Particulate Monitoring system to measure the concentration of dust particulates in the ambient air. The range of dust monitoring system is capable of monitoring various sizes of particulates ranging from 1 micron to 100 microns such as Ultrafine Suspended Particulate Matter – PM1 (UFPM), Respiratory Particulate Matter – PM2.5 (RSPM), Suspended Particulate Matter – PM10 (SPM), and Total Suspended Particulates – PM100 (TSP). By using external modules one can also monitor meteorological parameters like wind speed, wind direction to identify PM dispersion and impact of dust levels in a vicinity.

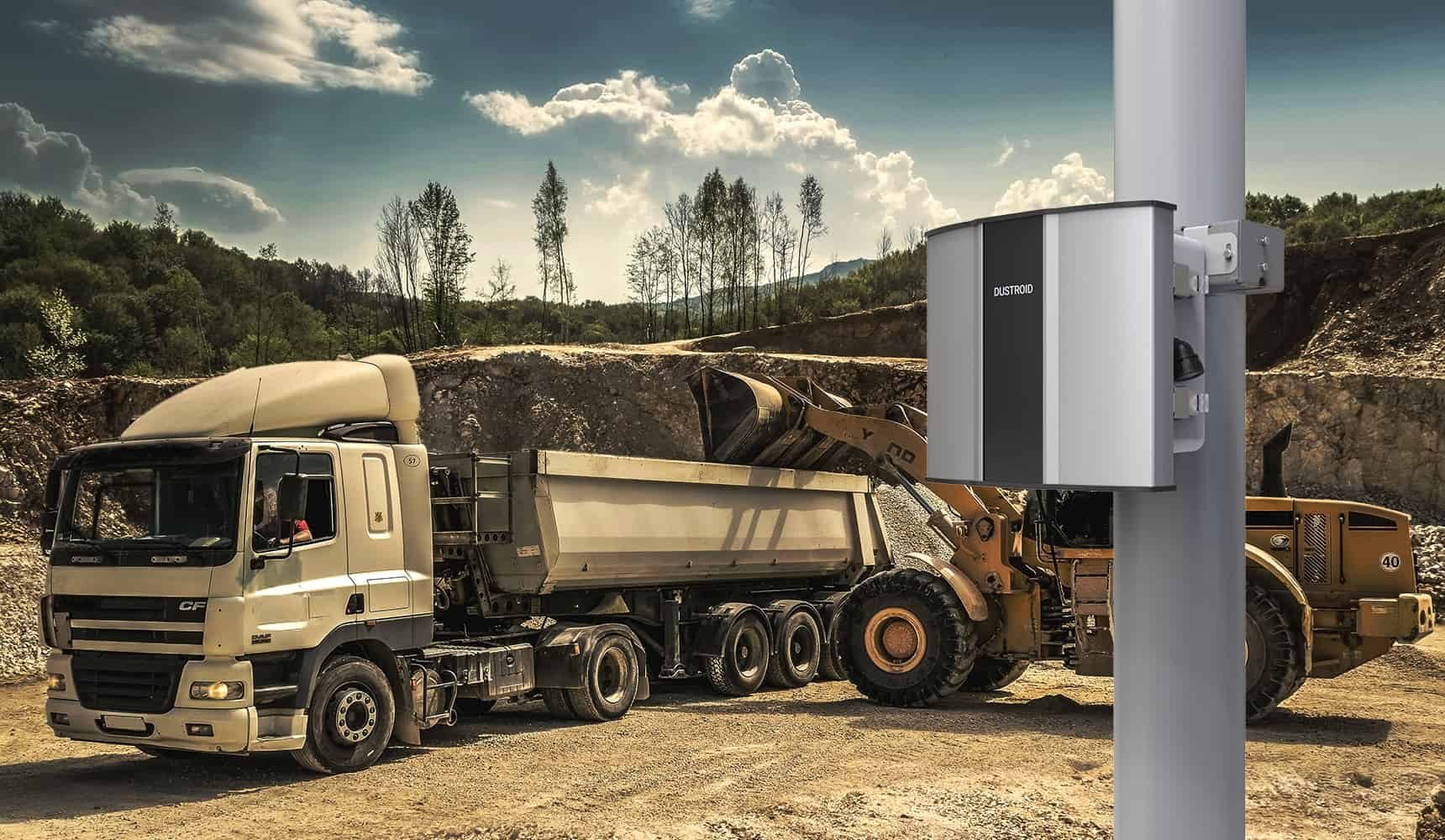

Dustroid is an ideal choice for dust surveys in areas with dust-laden activities like construction, mining, quarrying, ports, metallurgical processes, and many more, etc. The Dustroid measures all major particulate matter like PM1, PM2.5, PM10, PM100, Temperature, and Humidity. The dust monitoring device is technologically equipped and works on the Active Sampling method to count particulate matters using a highly accurate laser beam. Additionally, it has a heated inlet for dehumidification of air-sample. Its Anti-static inlet avoids loss of particulate during sampling. It offers remote calibration capabilities along with auto device firmware updates.
Our intelligent optical particle counter can measure data with high accuracy and transmit the same through various data communication modules like GSM, WiFi, LORA, etc. The data is transmitted to the Oizom cloud in near real-time. Additionally, it has an inbuilt memory backup to ensure no data loss in case of network failure. The collected data can be visualised on the Oizom IoT Terminal in the form of real-time dashboards, automated reports, and smart alerts. The data can also be accessed through Rest APIs for setting triggers and alerts to automate dust mitigation systems like fogging cannons, misting systems, and ambient dust purification systems.
Dustroid is an ideal choice for dust surveys in areas with dust-laden activities like construction, mining, quarrying, ports, metallurgical processes, and many more, etc. The Dustroid measures all major particulate matter like PM1, PM2.5, PM10, PM100, Temperature, and Humidity. The dust monitoring device is technologically equipped and works on the Active Sampling method to count particulate matters using a highly accurate laser beam. Additionally, it has a heated inlet for dehumidification of air-sample. Its Anti-static inlet avoids loss of particulate during sampling. It offers remote calibration capabilities along with auto device firmware updates.
Our intelligent optical particle counter can measure data with high accuracy and transmit the same through various data communication modules like GSM, WiFi, LORA, etc. The data is transmitted to the Oizom cloud in near real-time. Additionally, it has an inbuilt memory backup to ensure no data loss in case of network failure. The collected data can be visualised on the Oizom IoT Terminal in the form of real-time dashboards, automated reports, and smart alerts. The data can also be accessed through Rest APIs for setting triggers and alerts to automate dust mitigation systems like fogging cannons, misting systems, and ambient dust purification systems.
Product Features
Patent Pending Technology
Works on innovative e-breathing technology for higher data accuracy
Solar Powered
Capable of running independently on solar power
Network Agnostic
Wide range of connectivity options like GSM / WiFi / LoRa / NBIoT/ Ethernet
Over-The-Air Update
Automatically upgradeable from a central server without any onsite visit
Compact
Light-weight and compact system installed at 12-15 feet (3.5-4.5 m) height
Real-Time Data
Continuous monitoring and real-time data transfer at configurable intervals
Weatherproof
IP65 grade enclosure for endurance against harsh weather conditions
3-Level Calibration
The third-party nodal agency, reference station co-location & spot calibration
Parameters
Attachments
Technology
Data Accessibility
Download
Ultra Fine Particulate Matter (PM1) – UFPM
Respiratory Suspended Particulate Matter (PM2.5) – RSPM
Suspended Particulate Matter (PM10) – SPM
Total Suspended Particulates (PM100) – TSP
Ambient Light and UV Radiation
Temperature and Humidity.
These are the external modules that are attachable to the Dustroid dust monitor range. Also, please note that the external modules do not come as a part of standard offerings. You can order it separately or include it while purchasing the Dustroid product range. Please speak with our expert team to choose the right accessories as per your application.
Rain tipping bucket
Flood sensor
Ultrasonic Wind speed/direction sensor module
Solar Charging Kit

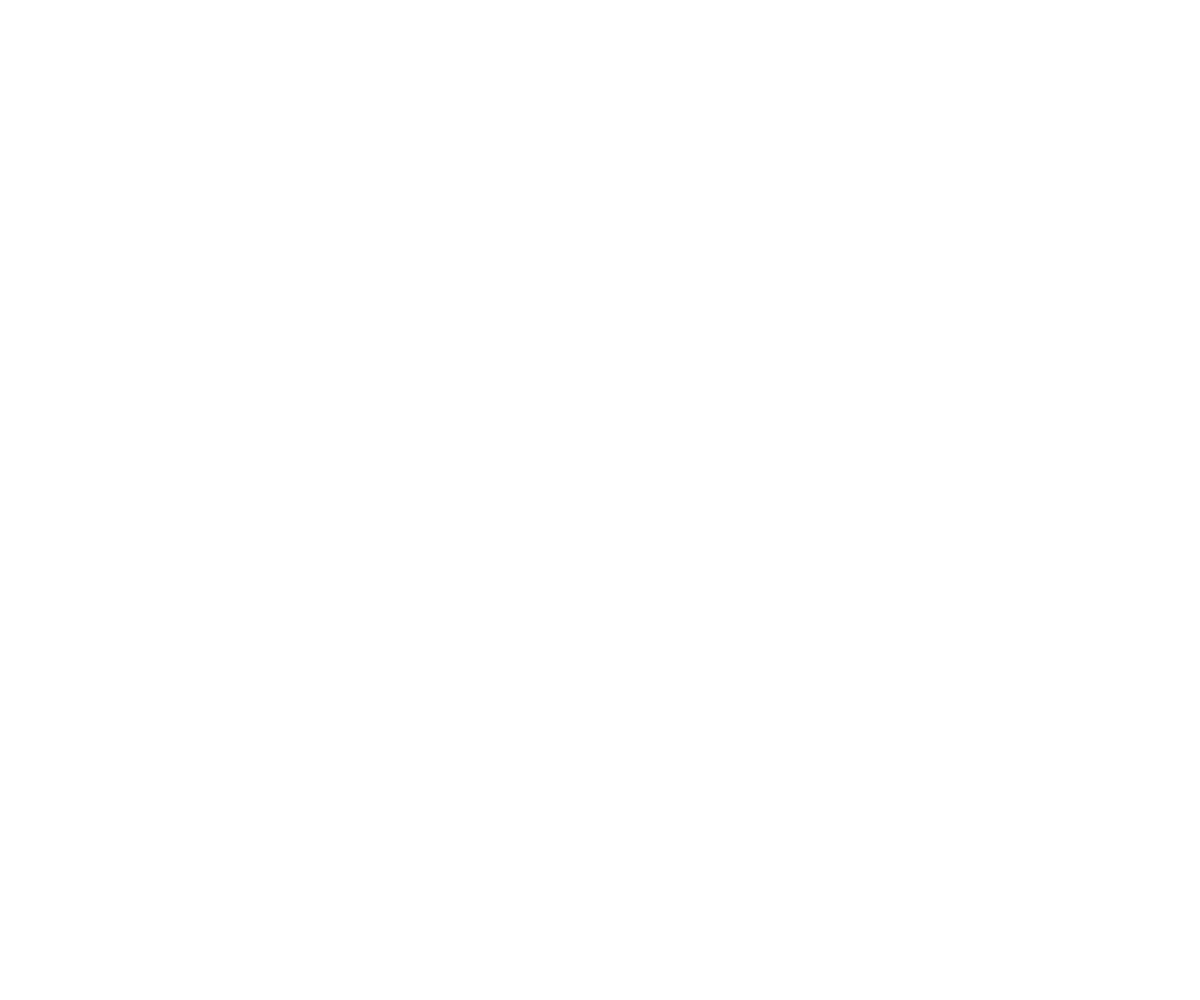

Our sensing technology works on proven working principles such as Optical Particle Counting, Laser Scattering, Semiconductor, and Optical Measurement. As a part of our proprietary ‘Micro Active Sampling’ (e-breathing technology), we also have a sophisticated suction-and-exhaust system for air sample collection and monitoring inside a controlled environment. This isolates the effect of the external environment on measurement to achieve 13% higher accuracy than the industry standards.
Laser Scattering – The sensor emits a laser beam to diffract through the air sample collected in the equipment. So, the intensity of the beam scattered from the particles provides particle size distribution and concentration data.
Laser Scattering – The sensor emits a laser beam to diffract through the air sample collected in the equipment. So, the intensity of the beam scattered from the particles provides particle size distribution and concentration data.
Dust data monitored by Dustroid is accessible using the Air Quality Software. The platform has essential features such as
Micro-analysis Dashboard
Historical Data Analytics
Dust Report
Smart Alerts
Historical Data-set Download
Dust Data is also accessible using secured HTTP/MQTT APIs. Using the APIS, the data can be published on Public Display, Smart TVs, Websites (using widget), and Mobile Apps.
Thus, by building conditional algorithms and logic on the real-time dust data, automated dust suppression is possible.
Thus, by building conditional algorithms and logic on the real-time dust data, automated dust suppression is possible.
Dust Particulate Monitoring Equipments

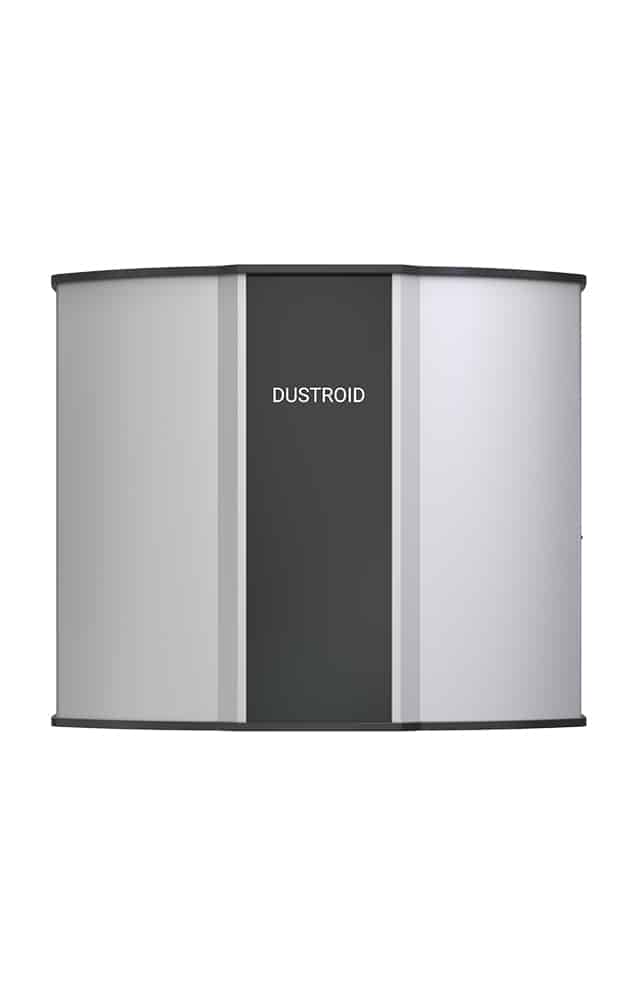

Dustroid product range comes in 2 variants. The variants are designed as per use-case and end-application. These 2 product variants are Dustroid Smart and Dustroid Pro.
Do you have a specific requirement?
Schedule a call with our expert team and get a customised solution
for your air quality monitoring requirement

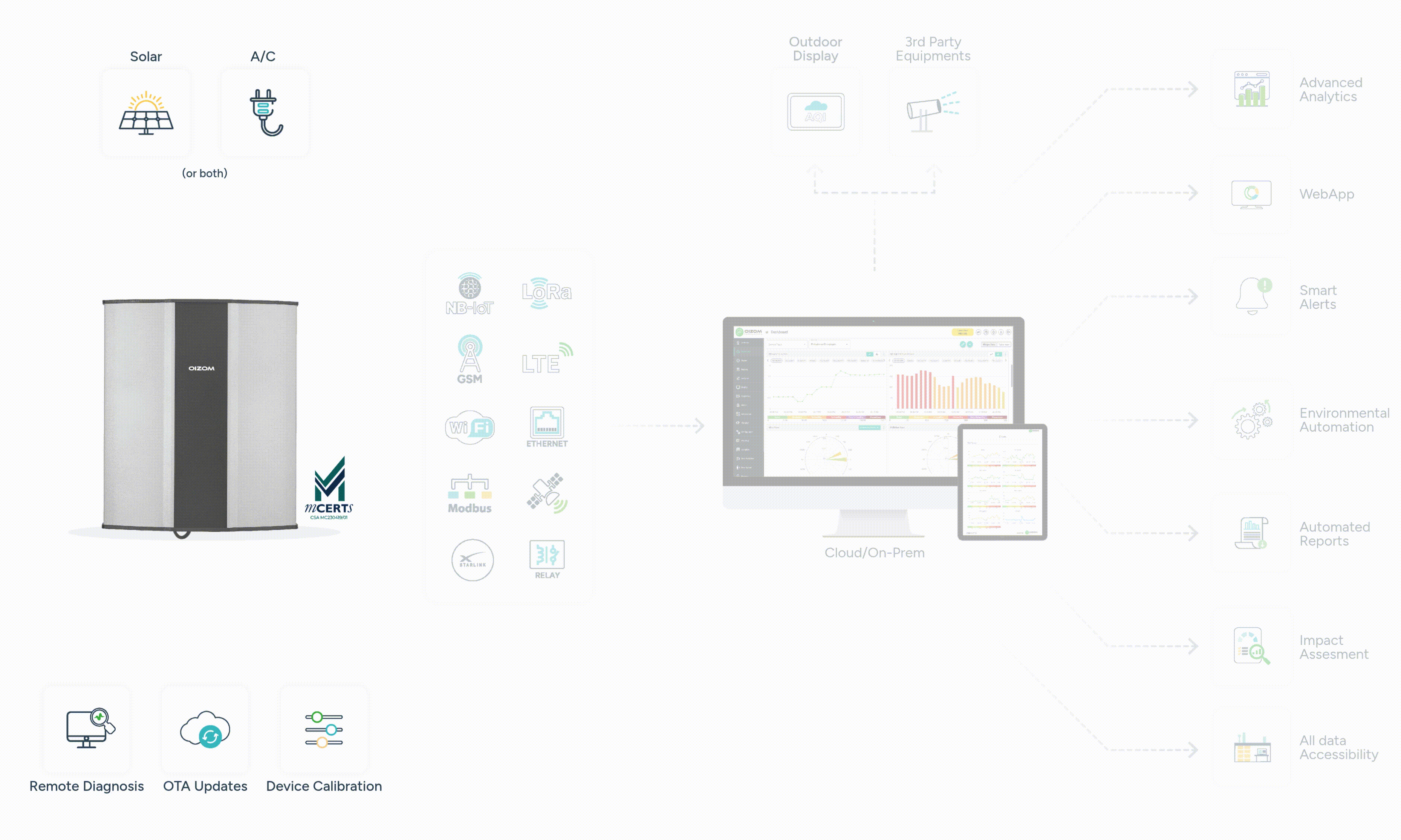

Dust Monitoring Device Architecture
Dustroid is designed with an ultra-modular approach to accommodate any existing infrastructure. For power, Dustroid can work on External AC or DC power as well as Solar Power (not available for Dustroid Pro). For data transmission, the Dustroid dust monitor range can communicate the data using various Wired and Wireless channels. GSM, GPRS, 3G, WiFi, LORA, LTE, SIGFOX are also available for wireless data communication. Where Ethernet, Modbus, RS-485, RS-283 are the wired data-communication options. The ambient air particulate data monitored by Dustroid can be transmitted to Oizom Cloud which can be hosted on Shared or Private Infrastructure. The data from Oizom Cloud can be useful for different data solutions on the basis of end-application.
Dust data measured from Dustroid can be visualised and analysed in Oizom Data Terminal. Smart dust alerts can be set-up on the dust data from Dustroid. Various process equipment can be regulated based on Dustroid data for automated solutions. Automated reports can be generated by the system. Using Dustroid data, real-time dust impact assessment is possible for management.
Dust data measured from Dustroid can be visualised and analysed in Oizom Data Terminal. Smart dust alerts can be set-up on the dust data from Dustroid. Various process equipment can be regulated based on Dustroid data for automated solutions. Automated reports can be generated by the system. Using Dustroid data, real-time dust impact assessment is possible for management.
Product Video
Dustroid Video explains everything you need to know about the Ambient Dust Monitoring equipment range. You may also watch the Dustroid Video to understand its Capabilities in terms of Parameters, Working Principles, Communication Protocols, Power Requirements, Data accessibility etc. It’s a 2 minute 56 seconds video covering all the important aspects of Ambient Air Particulate Monitoring.
Product Applications
Construction Sites

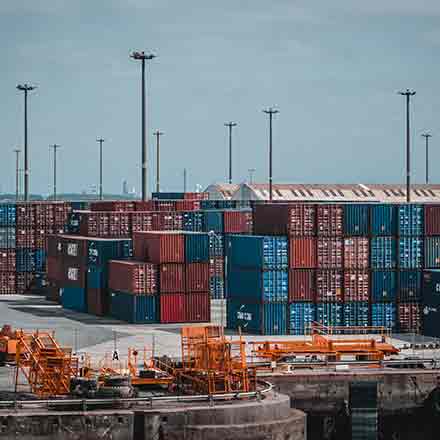

Sea Ports

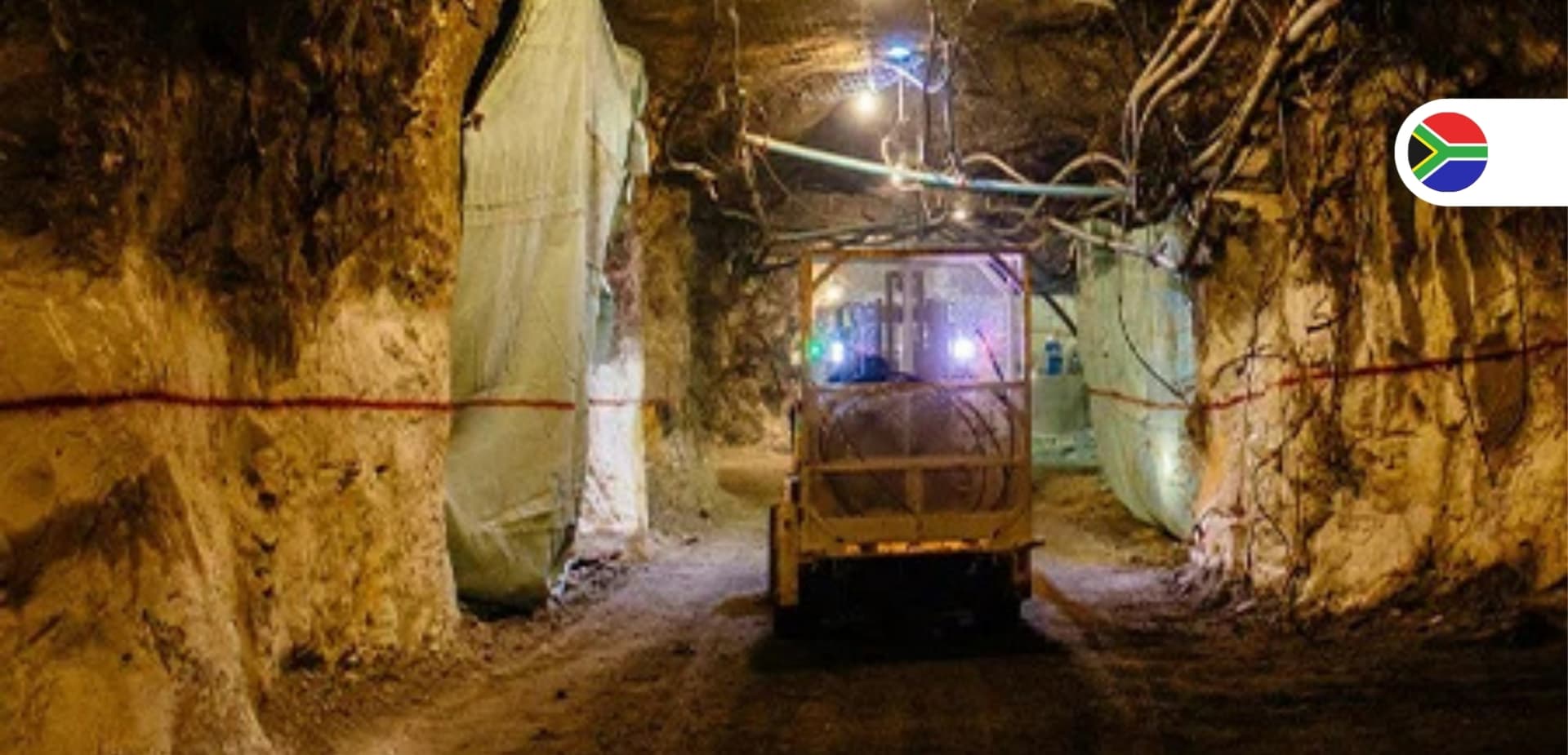

Mining And Quarrying
