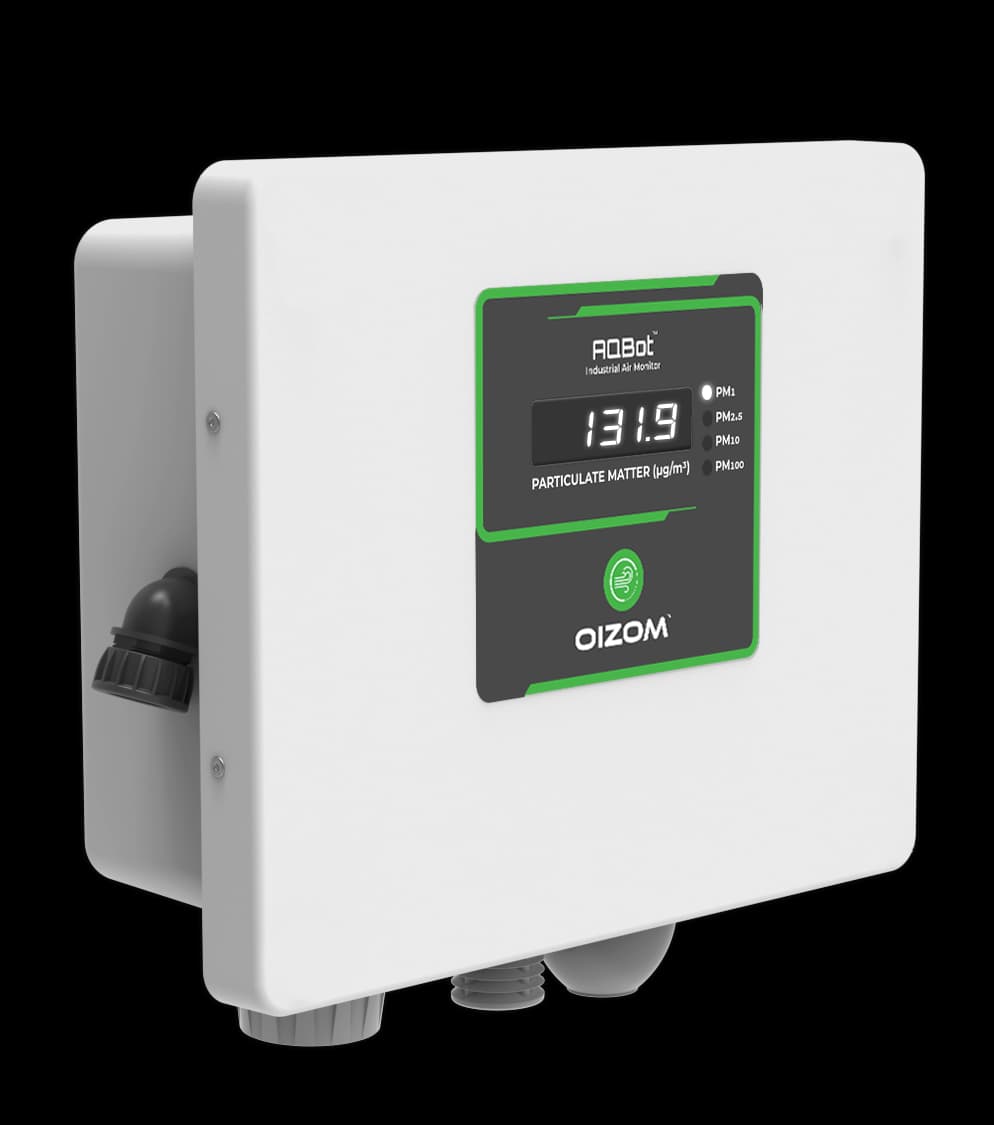

AQBot Single Parameter Monitor Series
Fixed Air Monitor for Industrial Air Monitoring
AQBot is an industrial air quality monitor with automation capabilities. AQBot Series offers a wide range of air quality parameters to choose from. AQBot product range consists of critical ambient parameters and toxic gases like Total Volatile Organic Compounds (TVOC), Ammonia (NH3), Hydrogen sulfide (H2S), Methane (CH4), Carbon Monoxide (CO), Formaldehyde (CH2O), Particulate Matter (PM1, PM2.5, PM10, PM100), Ambient Noise, etc. The AQBot series is designed for easy operation to suit multiple applications in the industry.
The AQBot enclosure houses robust electronics to last long in extreme industrial conditions. It offers industry-standard connectivity options in addition to multiple modes of wired and wireless communications. Using a wide range of communication capabilities, AQBot enables the Industrial Internet Of Things (IoT) which is the backbone of Industrial Revolution 4.0. AQBot can easily integrate with existing building monitoring or plant control systems infrastructure.
Product Features
Wide range of parameters
Compatible with a wide range of environmental parameters for gases, particulate matter, and Noise
Data analytics software
Advanced software with more than 10 different modules to view data, analyze, integrate and generate reports
Built-in Relay
Built-in relay for automating external equipment and better process control
Compact
Light-weight and compact system can be easily installed on any wall, pole, or structure
On Device Display
Built-in display to check on-site the concentration along with the unit of measurement
Real-Time Data
Continuous monitoring and real-time data transfer at configurable intervals
Alerts & Notifications
Siren and Strobe light (Optional) for generating real-time alerts in addition to software notifications
Wired Communications
Supports all industry-standard output signals like Modbus, Canbus, RS-485, RS-232
- Particulate Matter (PM1, PM2.5, PM10, PM100)
- Carbon Monoxide (CO)
- Nitrogen Dioxide (NO2)
- Sulfur Dioxide (SO2)
- Methene (CH4)
- TVOC
- Chlorine (CL2)
- Nitric Oxide (NO)
- Formaldehyde (CH2O)
- Ammonia (NH3)
- Hydrogen Sulfide (H2S)
- Methyl Mercaptan (CH3SH)

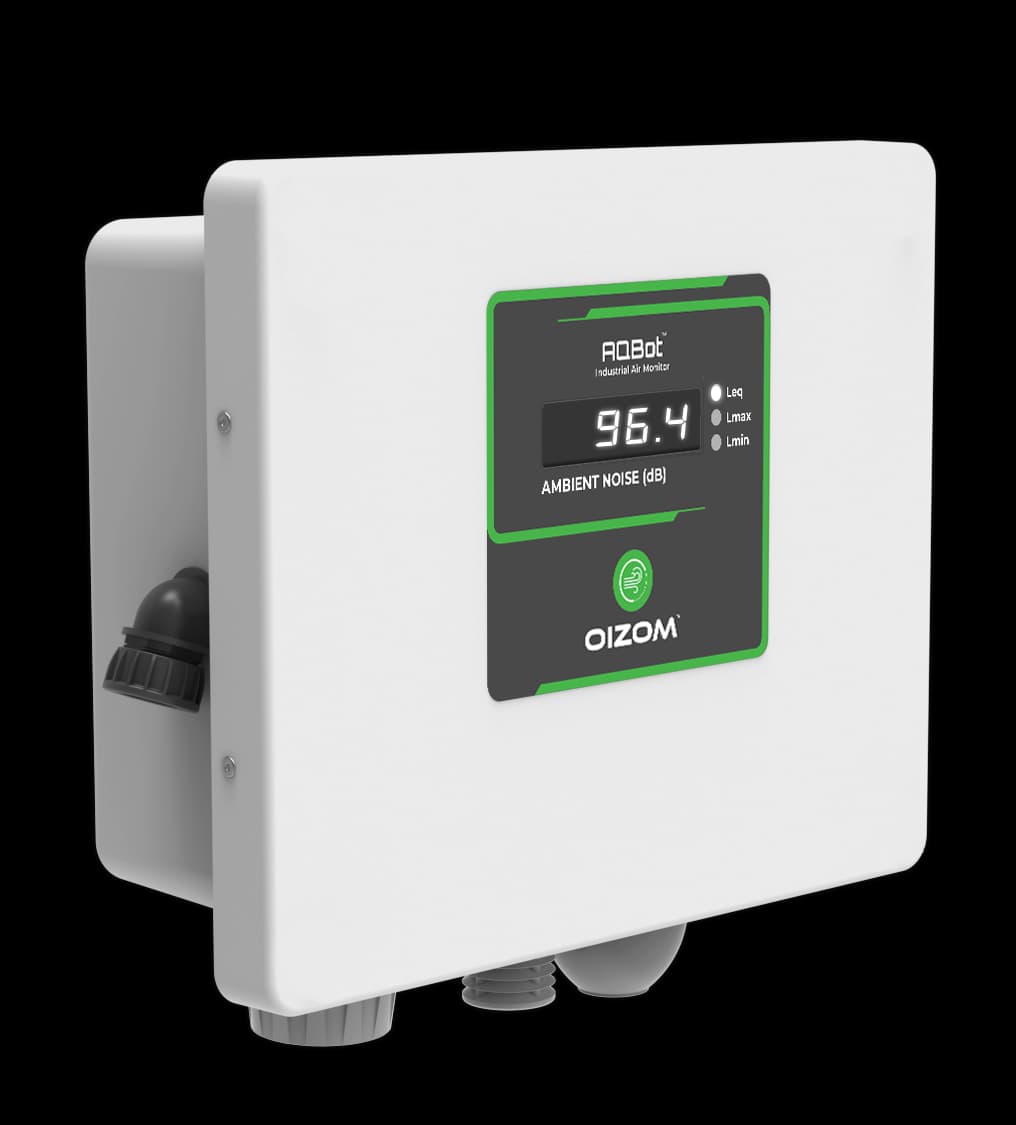

- Ambient Noise
- Hydrogen sulfide (H2S)
- DOWNLOAD FULL PARAMETER LIST
Strobe
Siren
Power Supply (SMPS)
Laser Scattering – The sensor emits a laser beam to diffract through the air sample collected in the equipment. The intensity of the beam scattered from the particles provides particle size distribution and concentration data.
Electrochemical Analysis – The gaseous emission is treated electrochemically, where an external potential is applied. Each species like CO, NO2, NO, NH3, H2S, SO2, etc. are identified depending on their oxidation or reduction potential.
NDIR – The gases emitted from the location undergo Nondispersive Infrared Radiation where the sample air is subjected to infrared radiation. Different gaseous molecules absorb IR at different frequencies. The amount of IR absorbed gives the volumetric concentration of each gaseous constituent.
PID – The photoionization detection method is used to quantify TVOCs present in the sample. Highly energized UV photons bombard the molecules, which ionize and make them positively charged. These ionized molecules, in return, produce an electric current which gives a volumetric concentration of the molecules. The higher the current generated, the higher is the gaseous concentration in the sample.
If the AQBot Series is connected to Oizom cloud, the data is also available in the Air Quality Software. The platform has essential features like…
Data Overview
Micro-analysis Dashboard
Historical Data Analytics
Data Report
Smart Alerts
Historical Data-set Download
Product Variants
AQBot series offers a wide range of industrial parameters. Being a single parameter monitor, each parameter comes in form of a product variant.
Do you know you can fully customize your air quality monitoring system with Oizom?
Schedule a call with our team of experts and get a customised solution for your air quality monitoring requirement.

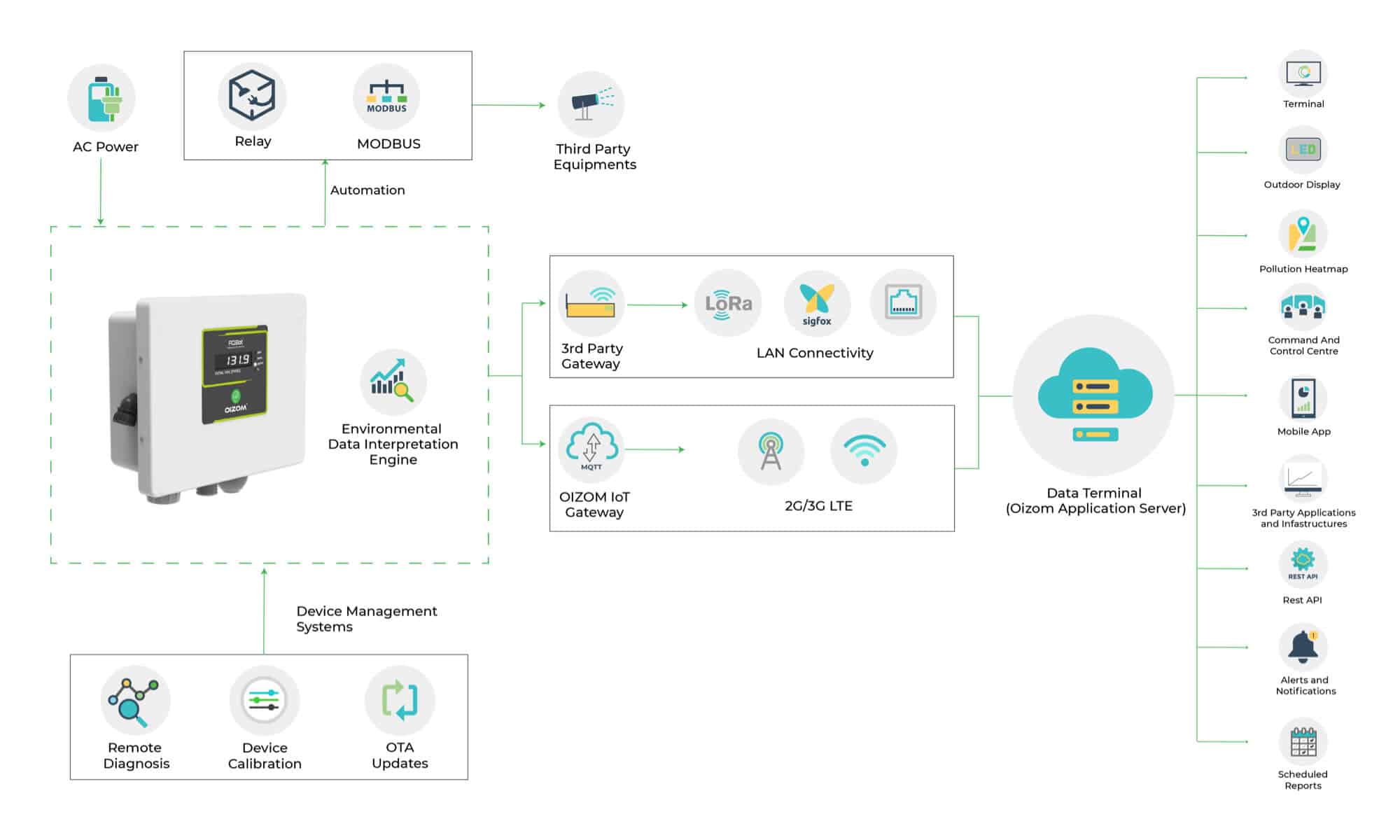

Air Quality Solution Architecture
