Ambient Air Quality Monitoring System
POLLUDRONE

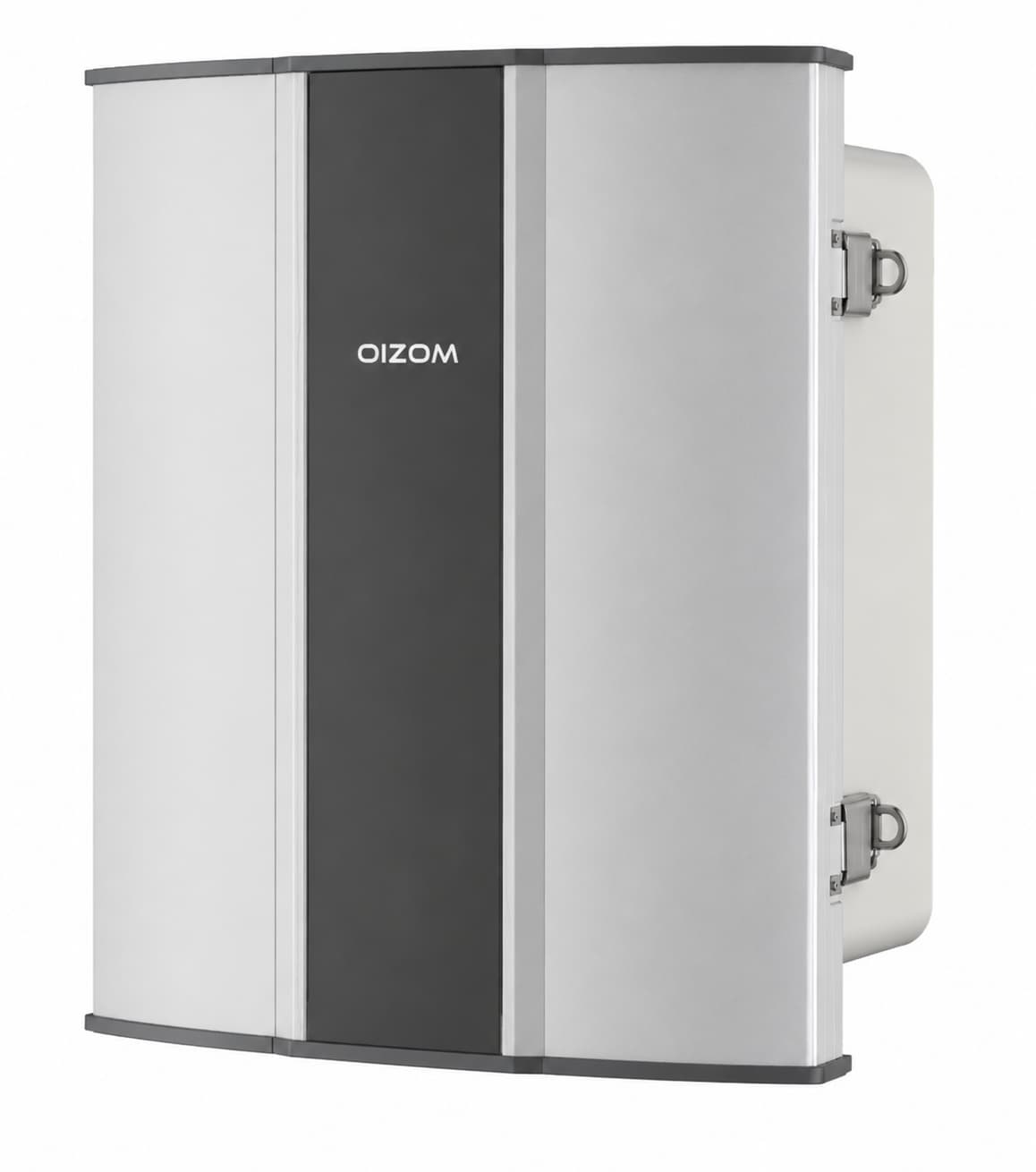

Polludrone is a fully integrated real-time air quality monitoring system that delivers reference equivalent performance. Polludrone is a comprehensive solution to monitor all the critical ambient environmental parameters related to air quality, noise, odor, weather, and radiation. In addition, meteorological parameters like wind speed, wind direction, rainfall, flood levels, and visibility can be monitored using external modules for ground-level weather data. Polludrone is a highly accurate yet cost-effective solution – measuring criteria pollutants to WHO air quality limits yet costing 10x less than a traditional station based on analyzer technology.

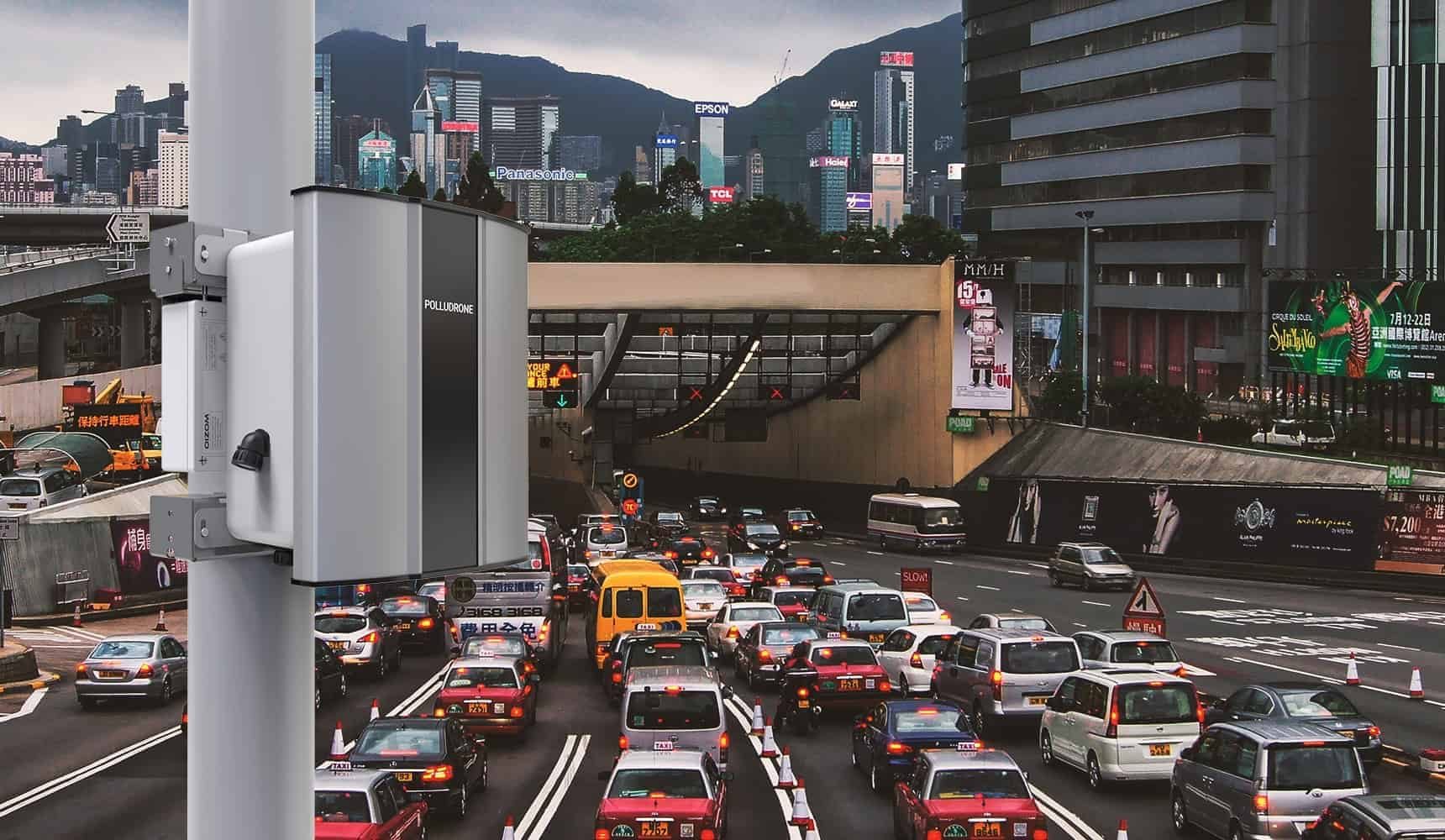

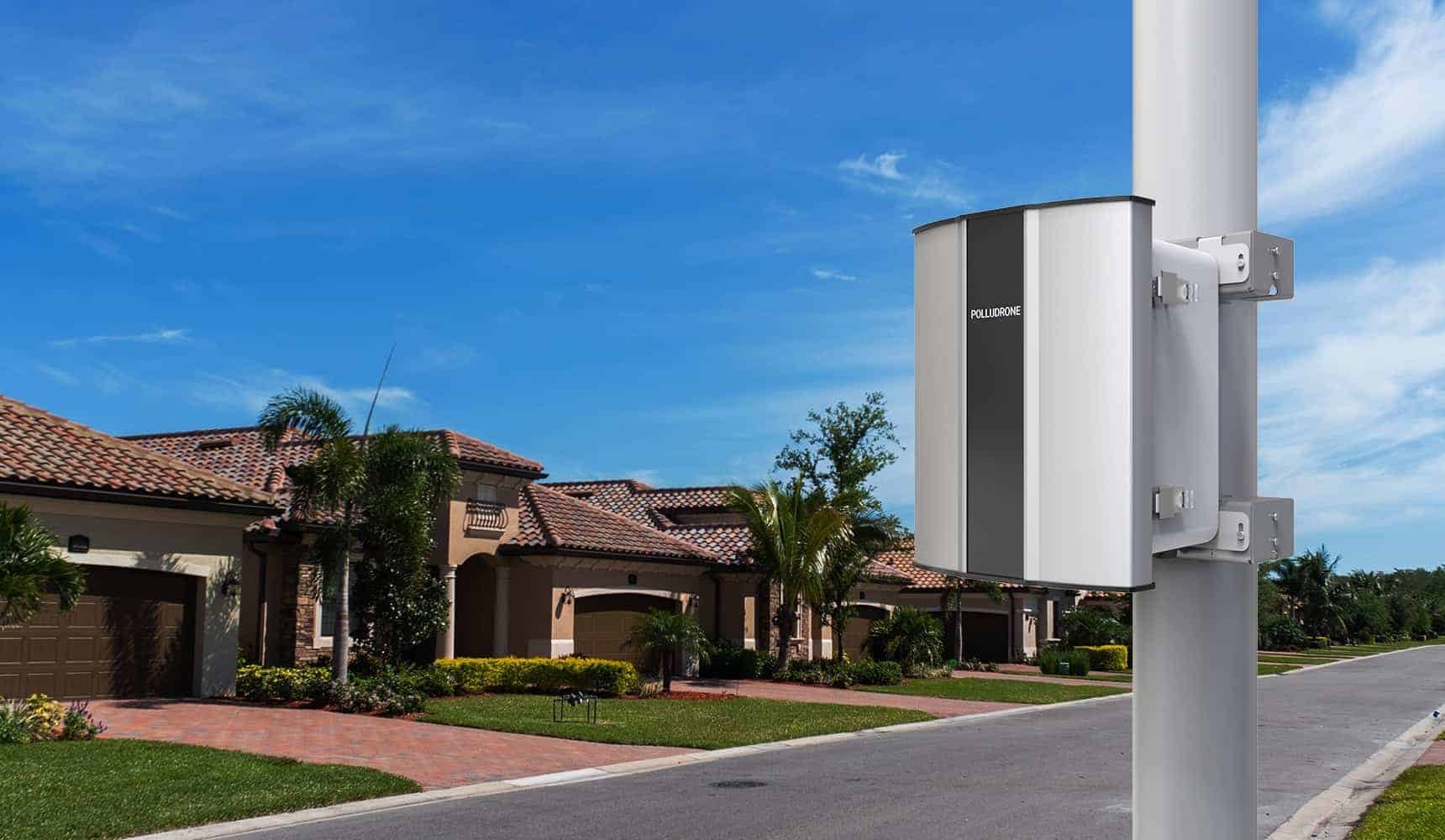

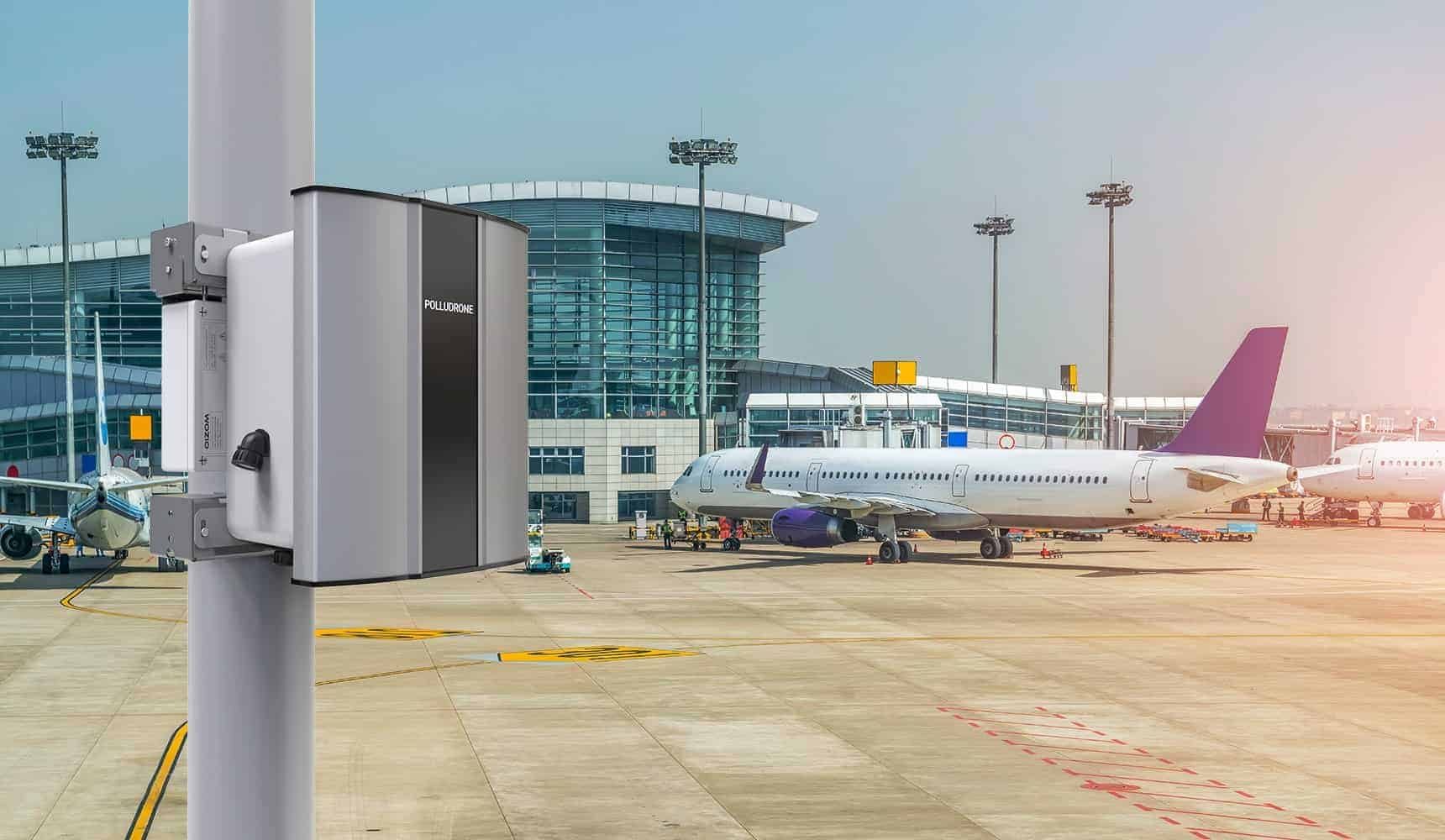

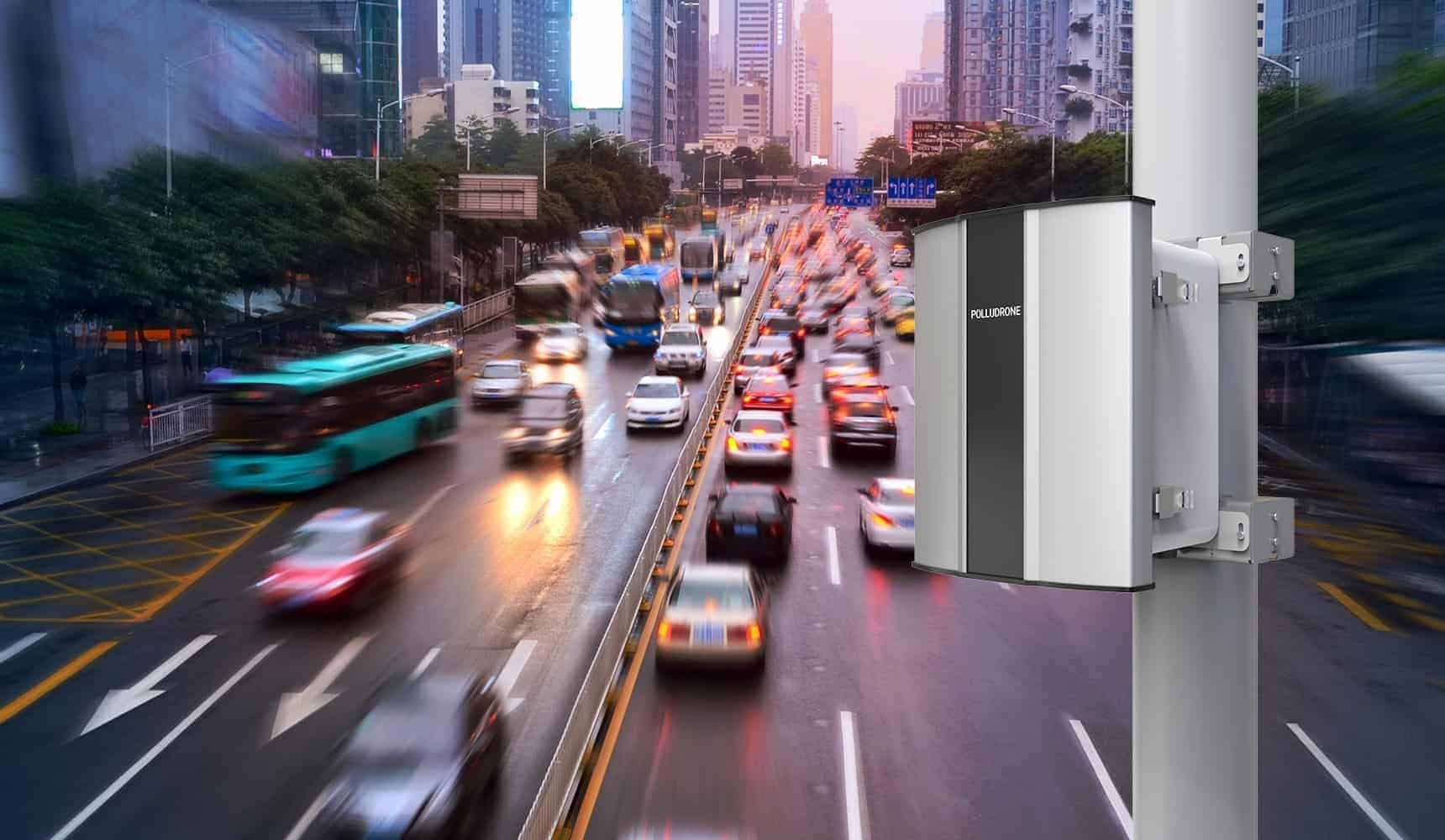

The Polludrone is an ideal choice for smart infrastructure applications such as Smart Cities, Airports, neighborhoods, University Campuses, Schools, Highways, Tunnels, and roadside monitoring. Polludrone is the perfect ambient air pollution monitoring system to understand the environmental health of a premise. The accurate air quality data from the Polludrone can be used by decision-makers for strategic planning and data-driven infrastructure and policy level changes.
The Polludrone measures all major ambient parameters such as PM1, PM2.5, PM10, PM100, Carbon Monoxide (CO), Carbon Dioxide (CO2), Sulfur Dioxide (SO2), Nitrogen Dioxide (NO2), Ozone (O3), Hydrogen Sulfide (H2S), Ambient Noise, Light, UV, Temperature, and Humidity. The Polludrone uses our patented e-breathing sampling technology that offers higher accuracy and near-reference data. Hence, by creating a dense network of data points, the Polludrone is powered to generate hyperlocal pollution data.
The Polludrone outdoor air quality monitoring system is communication agnostic. The device works on various wired and wireless communication protocols like GSM, WiFi, LoRA, Sigfox, and NBIoT to transmit the data on the Oizom cloud in near real-time. Additionally, it has an inbuilt memory backup to ensure no data loss in network failure. Polludrone works seamlessly with Oizom IoT Terminal. Uses can visualize the data in a real-time dashboard, automated reports, and intelligent alerts on the platform. The data can also be accessible through Rest APIs for integration into 3rd party software and process automation. The Polludrone is your one-stop solution to monitor National Air Quality Index (NAQI).
The Polludrone is an ideal choice for smart infrastructure applications such as Smart Cities, Airports, neighborhoods, University Campuses, Schools, Highways, Tunnels, and roadside monitoring. Polludrone is the perfect ambient air pollution monitoring system to understand the environmental health of a premise. The accurate air quality data from the Polludrone can be used by decision-makers for strategic planning and data-driven infrastructure and policy level changes.
The Polludrone measures all major ambient parameters such as PM1, PM2.5, PM10, PM100, Carbon Monoxide (CO), Carbon Dioxide (CO2), Sulfur Dioxide (SO2), Nitrogen Dioxide (NO2), Ozone (O3), Hydrogen Sulfide (H2S), Ambient Noise, Light, UV, Temperature, and Humidity. The Polludrone uses our patented e-breathing sampling technology that offers higher accuracy and near-reference data. Hence, by creating a dense network of data points, the Polludrone is powered to generate hyperlocal pollution data.
The Polludrone outdoor air quality monitoring system is communication agnostic. The device works on various wired and wireless communication protocols like GSM, WiFi, LoRA, Sigfox, and NBIoT to transmit the data on the Oizom cloud in near real-time. Additionally, it has an inbuilt memory backup to ensure no data loss in network failure. Polludrone works seamlessly with Oizom IoT Terminal. Uses can visualize the data in a real-time dashboard, automated reports, and intelligent alerts on the platform. The data can also be accessible through Rest APIs for integration into 3rd party software and process automation. The Polludrone is your one-stop solution to monitor National Air Quality Index (NAQI).
Product Features
Patent Pending Technology
Works on innovative e-Breathing technology for higher data accuracy
Solar Powered
Capable of running independently on solar power
Network Agnostic
Wide range of connectivity options like GSM / WiFi / LoRa / NBIoT/ Ethernet
Over-The-Air Update
Automatically upgradeable from a central server without any onsite visit
Compact
Light-weight and compact system installed at 12-15 feet (3.5-5 m) height
Real-Time Data
Continuous monitoring and real-time data transfer at configurable intervals
Weatherproof
IP66 grade enclosure for endurance against harsh weather conditions
3-Level Calibration
The third-party nodal agency, reference station co-location & spot calibration
Parameters
Attachments
Technology
Data Accessibility
Download
Ultra Fine Particulate Matter (PM1) – UFPM
Respiratory Suspended Particulate Matter (PM2.5) – RSPM
Suspended Particulate Matter (PM10) – SPM
Total Suspended Particulates (PM100) – TSP
Carbon Monoxide (CO)
Carbon Dioxide (CO2)
Sulfur Dioxide (SO2)
Nitrogen Dioxide (NO2)
Nitrogen Oxide (NO)
Ozone (O3)
Hydrogen Sulfide (H2S)
Ambient Noise
Ambient Light and UV Radiation
Temperature, Humidity, and Barometric Parameters
These are the external modules that can be attached to the Polludrone – air quality monitoring system. Please note that the external modules do not come as a part of standard offerings. You can order it separately or include it while purchasing the Polludrone lite air quality monitor. Please speak with our expert team to choose the right accessories as per your application.
Rain tipping bucket
Flood sensor
Ultrasonic Wind speed/direction sensor module
Solar Charging Kit
Our sensing technology works on proven working principles like NDIR, Electrochemical Analysis, Semiconductor, Optical Measurement, and Laser-Scattering. In addition, as a part of our proprietary ‘Micro Active Sampling’ (e-breathing technology), we have a sophisticated suction-and-exhaust system for air sample collection and monitoring inside a controlled environment. The technology isolates the external environment’s effect on measurement to achieve 13% higher accuracy than the industry standards.
Laser Scattering: The sensor emits a laser beam to diffract through the air sample collected in the equipment. Therefore, the intensity of the beam scattered from the particles provides particle size distribution and concentration data.
Electrochemical Analysis: The gaseous emission is treated electrochemically, where an external potential is applied. Hence, each species such as CO2, H2S, CH4 is identifiable depending on their oxidation or reduction potential.
NDIR: The gases emitted from the location undergo Nondispersive Infrared Radiation where the air sample comes in contact with the infrared radiation. Different gaseous molecules absorb IR at different frequencies. So, the amount of IR absorbed gives the volumetric concentration of each gaseous constituent.
Laser Scattering: The sensor emits a laser beam to diffract through the air sample collected in the equipment. Therefore, the intensity of the beam scattered from the particles provides particle size distribution and concentration data.
Electrochemical Analysis: The gaseous emission is treated electrochemically, where an external potential is applied. Hence, each species such as CO2, H2S, CH4 is identifiable depending on their oxidation or reduction potential.
NDIR: The gases emitted from the location undergo Nondispersive Infrared Radiation where the air sample comes in contact with the infrared radiation. Different gaseous molecules absorb IR at different frequencies. So, the amount of IR absorbed gives the volumetric concentration of each gaseous constituent.
Air Quality Data Monitored by Polludrone is also accessible using the Air Quality Software. The platform has essential features such as
Air Quality Data Overview
Micro-analysis Dashboard
Historical Data Analytics
Air Quality Report
Smart Alerts
Historical Data-set Download
Air Quality Data is also accessible using secured HTTP/MQTT APIs. In addition, the data can be published on Public displays, Smart TVs, Websites (using widgets), and Mobile Apps using the APIS.
Therefore, by building conditional algorithms and logic on the real-time air-quality data, environmental automation is possible.
Environmental.Ai platform can also generate a Live Air-Quality Map using the Dense Air-quality data network.
Therefore, by building conditional algorithms and logic on the real-time air-quality data, environmental automation is possible.
Environmental.Ai platform can also generate a Live Air-Quality Map using the Dense Air-quality data network.
Polludrone Variants
The Polludrone air quality monitoring system has three variants available are Polludrone Lite, Polludrone Smart, and Polludrone Pro. These product variants are designed to target different applications and use-cases.
PM2.5, PM10, CO2, CO, SO2, NO, NO2, O3, Noise, Light, UV-Radiation, Temperature, Humidity
PM1, PM2.5, PM10, PM100, CO2, CO, SO2, NO, NO2, O3, H2S, Noise, Light, UV-Radiation, Temperature, Humidity
Do you have a specific requirement?
Schedule a call with our expert team and get a customised solution
for your air quality monitoring requirement
Polludrone Air Monitoring System Architecture
Polludrone Solution is designed with an ultra-modular approach to accommodate any existing infrastructure. For power, Polludrone can work on External AC or DC power as well as Solar Power. For data transmission, Polludrone can communicate the data using various Wired and Wireless channels. GSM, GPRS, 3G, WiFi, LORA, LTE, and SIGFOX are available for wireless data communication. Where Ethernet, Modbus, RS-485, and RS-283 are the wired data-communication options. Also, the air-quality data monitored by Polludrone can be transmitted to Oizom Cloud, which can be hosted on Shared or Private Infrastructure.
The data from Oizom Cloud can be helpful for different data solutions based on the end applications. Users can visualize the Polludrone data in Oizom Data Terminal. Additionally, it can publish the data on an Outdoor display. Generation of air Pollution Maps is possible using Polludrone Data. The data from Polludrones can be accessible in the Command & Control Centre (CCC) of a Smart City. The real-time data can be transmitted to 3rd party applications using secure end-point APIs. Read all case studies on air pollution to know more about the product application and use cases.
The data from Oizom Cloud can be helpful for different data solutions based on the end applications. Users can visualize the Polludrone data in Oizom Data Terminal. Additionally, it can publish the data on an Outdoor display. Generation of air Pollution Maps is possible using Polludrone Data. The data from Polludrones can be accessible in the Command & Control Centre (CCC) of a Smart City. The real-time data can be transmitted to 3rd party applications using secure end-point APIs. Read all case studies on air pollution to know more about the product application and use cases.
Product Video
Polludrone Video explains everything you need to know about our range of Air Quality Monitoring Systems. In addition, you may watch the Polludrone Video to understand its Capabilities in terms of Parameters, Working Principles, Communication Protocols, Power Requirements, Data accessibility. It’s a 4 minute 19 seconds video covering all the essential aspects of Ambient Air Quality Monitoring.
Play Video
