Temperature:
Measurement Range:
-40 to 125 deg cel
Minimum Detection Limit:
-40 C
Sensor Life:
2 Years
Working Principle:
Solid State Semiconductor Sensing
Measurement Precision:
+- 0.5 C

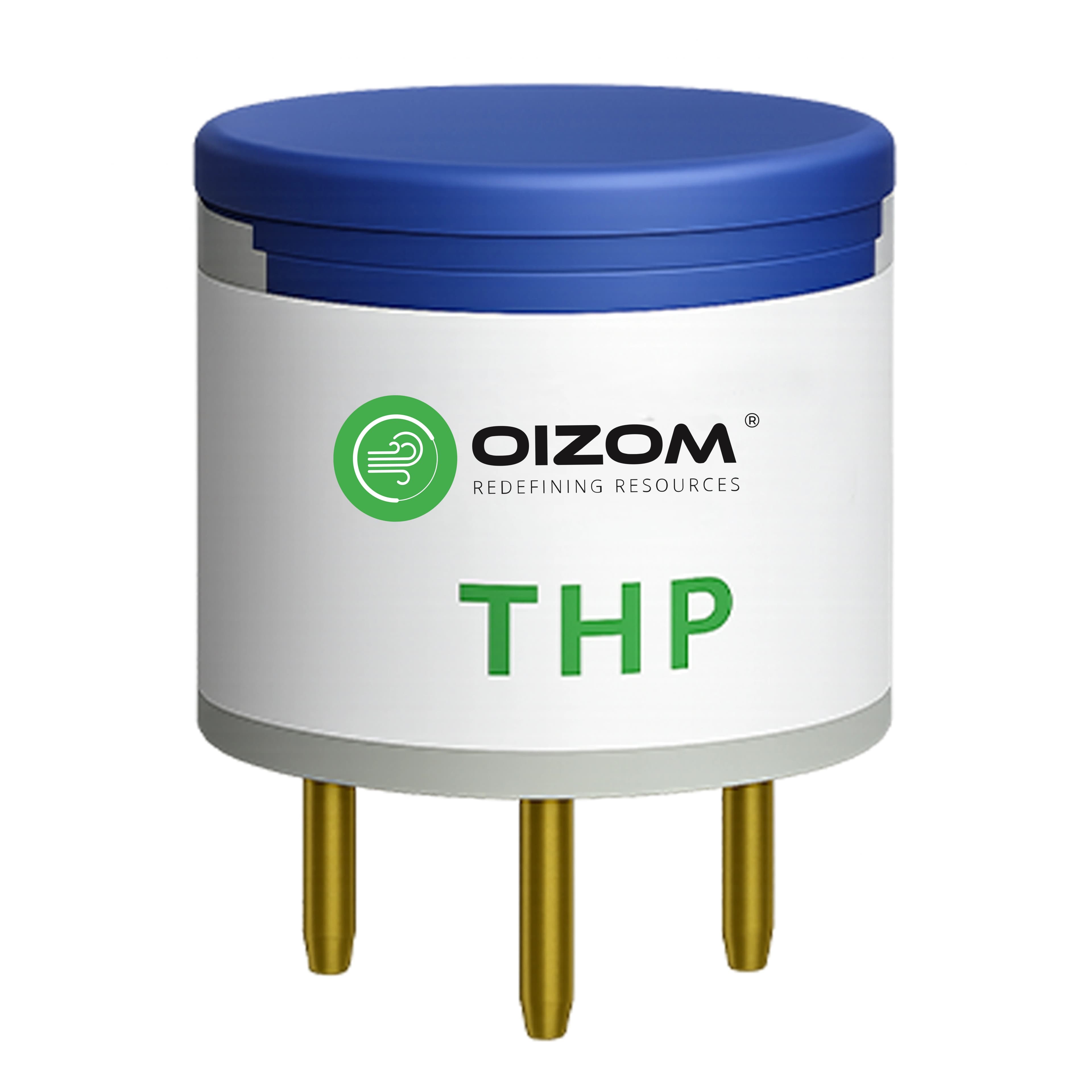

Temperature - Humidity - Barometric Pressure Sensor Module
Temperature Sensor Module for Ambient Condition Monitoring
The temperature-humidity-barometric pressure sensor module can accurately measure the temperature, relative humidity and atmospheric pressure in ambient conditions. The design allows the sensor to monitor the atmospheric conditions on a real-time basis.
.webp&w=3840&q=75)
Measurement Principle
The Temperature–Humidity–Barometric Pressure sensor uses solid-state sensing technology to continuously monitor ambient environmental conditions. Temperature and humidity are measured through changes in the electrical properties of the sensing elements in response to variations in temperature and moisture levels. Atmospheric pressure is measured using an integrated pressure-sensing element that detects changes in ambient air pressure. These signals are processed and converted into accurate real-time readings of temperature, relative humidity, and barometric pressure.
Specification
Humidity:
Measurement Range:
Up to 100% Rh
Minimum Detection Limit:
0.10%
Sensor Life:
2 Years
Working Principle:
Solid State Semiconductor Sensing
Measurement Precision:
0.5%
Pressure:
Measurement Range:
300-1100 hPa
Minimum Detection Limit:
300 hPa
Sensor Life:
2 Years
Working Principle:
Solid State Semiconductor Sensing
Measurement Precision:
±1.0 hPa
