Ambient Air Quality Monitoring Device
Polludrone Smart
The Polludrone Smart is an air quality monitoring device specially developed to monitor ambient air quality. The Polludrone Smart is a compact and connected CAAQMS which offers near real-time air quality data of all the National Air Quality Index (NAQI) parameters. The ease of installation and the requirement for minimal space for deployment makes it a scalable solution to be deployed at multiple locations. For instance, deploying the Smart version creates an air quality sensor network for crucial applications like Smart Cities, Roadside monitoring, Occupational Health monitoring.
With rapid urbanization wherein more than 54% of the population lives in cities it is very crucial to understand the environmental health of the city. The Smart Cities mission has Environment as one of the key pillars. Hence, intelligent Air Quality Monitors like Polludrone Smart is a preferred choice for city health monitoring and enabling city authorities to enable data-driven infrastructure and policy level changes.
Its measures all the AQI parameters such as PM2.5, PM10, Carbon Monoxide (CO), Carbon Dioxide (CO2), Sulfur Dioxide (SO2), Nitrogen Dioxide (NO2), Ozone (O3), Ambient Noise, Light, UV, Temperature, and Humidity. Therefore, by deploying Polludrone Smart we focus on AQI monitoring.
And Its Technologically equipped to offer higher accuracy with features like patented e-breathing technology, humidity correction for Particulate monitoring, Auto device firmware updates, Anti-static inlet to avoid loss of particulate during sampling, and remote calibration capabilities.
Additionally, our Intelligent Air Quality Monitoring device can transmit data through various data communication modules like GSM, WiFi, LORA, etc. Hence, the device transmits data to the Oizom cloud in near real-time. Also, it has an inbuilt memory backup to ensure no data loss in case of network failure. The collected data can be visualized on the Oizom IoT Terminal in the form of real-time dashboards, automated reports, and smart alerts. Moreover, the data accessibility through Rest APIs for integration into 3rd party software and Central Command Centre is also possible.
- An integrated solution includes all the critical air quality parameters such as PM2.5, PM10, CO, CO2, SO2, NO, NO2, O3, Noise, Light, UV, Temperature, Humidity.
- Includes all the necessary parameters to monitor the Air Quality Index (AQI).
- Options to attach external modules from a wide range of parameters like Wind-speed, Wind-direction, Rainfall, Flood Monitoring.
- Solar compatible solution with internal battery for more than 24Hours backup.
- Wide range of communication protocols to choose from (as per solution architecture and availability).
- Easy to install using plug-and-play design. Versatile mounting available to install on pole, wall, fence, or any existing structure.
- The low-cost solution to deploy at multiple locations is to establish a dense air quality network.
- Using onboard calibration capability, calibration on an existing device is possible on the spot without taking it back to the laboratory.
- Real-time data transfer allows for appropriate environmental actions.
- Data availability in Air Quality Software for further visualization and analytics.
- Air Quality Data API fulfils various applications and use-cases.
- Patent Pending Technology: Works on innovative e-breathing technology for higher data accuracy
- Solar Powered: Capable of running independently on solar power
- Retrofit Design: Plug and play design for ease of implementation
- Compact: Light-weight and compact system installed at 12-15 feet (4-5 m) height
- Ultimate Durability: Made of high-grade engineering-metal and composite polymers for long life
- Real-Time Data: Continuous monitoring and real-time data transfer at configurable intervals
- Network Agnostic: Supports a wide range of connectivity options like GSM / WiFi / LoRa / NBIoT/ Ethernet
- Weatherproof: IP65 grade enclosure for endurance against harsh weather conditions
- Tamper Proof: Comes with a security system to avoid tampering/malfunction/sabotage
- Identity & Configuration: Each equipment carries its unique identity with geo-tagging through wireless configuration
- Over-The-Air Update: Automatically upgradeable from a central server without any onsite visit
- 3-Level Calibration: Can also be calibrated by a third party nodal agency, reference station co-location, and spot calibration
The air quality monitoring device has all the air quality sensor modules integrated into a single enclosure. Each sensor module works on different technologies. Our sensing technology works on proven working principles such as NDIR, Electrochemical Analysis, Semiconductor, Optical Measurement, and Laser-Scattering. As a part of our proprietary ‘Micro Active Sampling’ (e-breathing technology), we have a sophisticated suction-and-exhaust system for air sample collection and monitoring inside a controlled environment. This isolates the effect of the external environment on measurement to achieve 13% higher accuracy than the industry standards.
Laser Scattering – The sensor emits a laser beam to diffract through the air sample collected in the equipment. Hence,The intensity of the beam scattered from the particles provides particle size distribution and concentration data.
Electrochemical Analysis – It works based on the diffusion of the gas into the sensor which results in the production of an electrical signal proportional to the gas concentration.
NDIR – The gases emitted from the location undergoes Nondispersive Infrared Radiation where the sample air is subjected to infrared radiation. Different gaseous molecules absorb IR at different frequencies. So, the amount of IR absorbed gives the volumetric concentration of each gaseous constituent.
- GSM/GPRS: Second-generation digital cellular network for global coverage
- Ethernet: Wired local area network deployment capability for secure data transfer
- LoRa: Low Range, Low Power consumption transmission in sub-gigahertz radio frequency bands like 433 MHZ, 868 Mhz & 915 Mhz.
- Sigfox: Wide-reach & ultra-narrowband transmission for extensive area coverage with up to 140 uplink messages a day, 12 octet payload, and 100 bytes/second data rate.
- LTE: Standard wireless broadband communication for mobile devices and data terminals
- NB-IoT: High connection density capability with single Narrow-Band of 200kHz and enhanced Machine-Type communication LTE.
- WiFi: Wireless Local Area network deployment functionality based on the IEEE 802.11 standard.
- MODBUS: RS283 and RS485 based industrial grade communication
Air Quality Data Overview
Micro-analysis Dashboard
Historical Data Analytics
Air Quality Report
Smart Alerts
Historical Data-set Download
Therefore, by building conditional algorithms and logic on real-time air-quality data, environmental automation is possible.
Above all, using a Dense Air-quality data network, Environmental.Ai platform can generate a Live Air Quality Mapping.
Product Applications
Do you know you can fully customize your air quality monitoring system with Oizom?
Schedule a call with our team of experts and get a customised solution for your air quality monitoring requirement.
Related Products

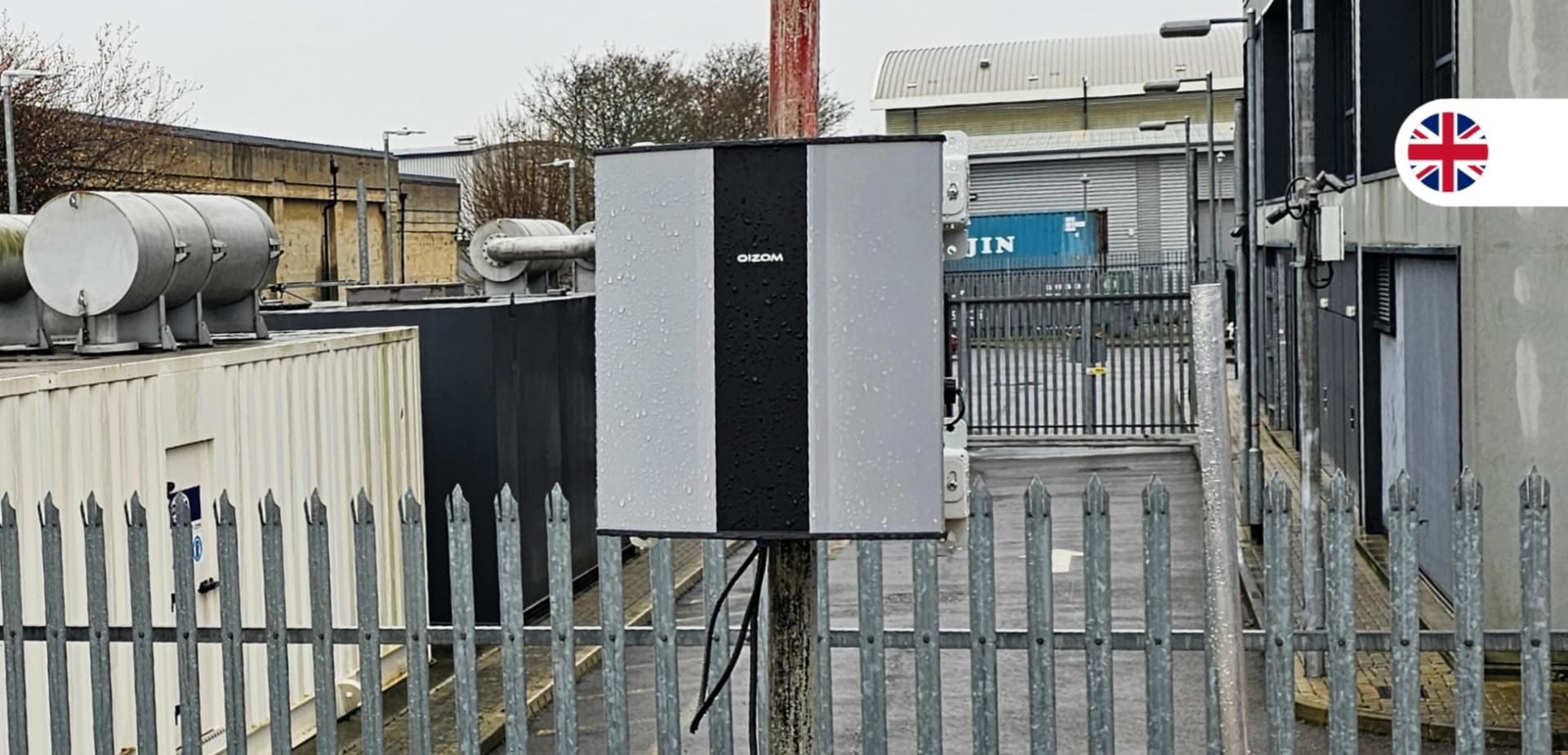

Air Quality Case Studies
