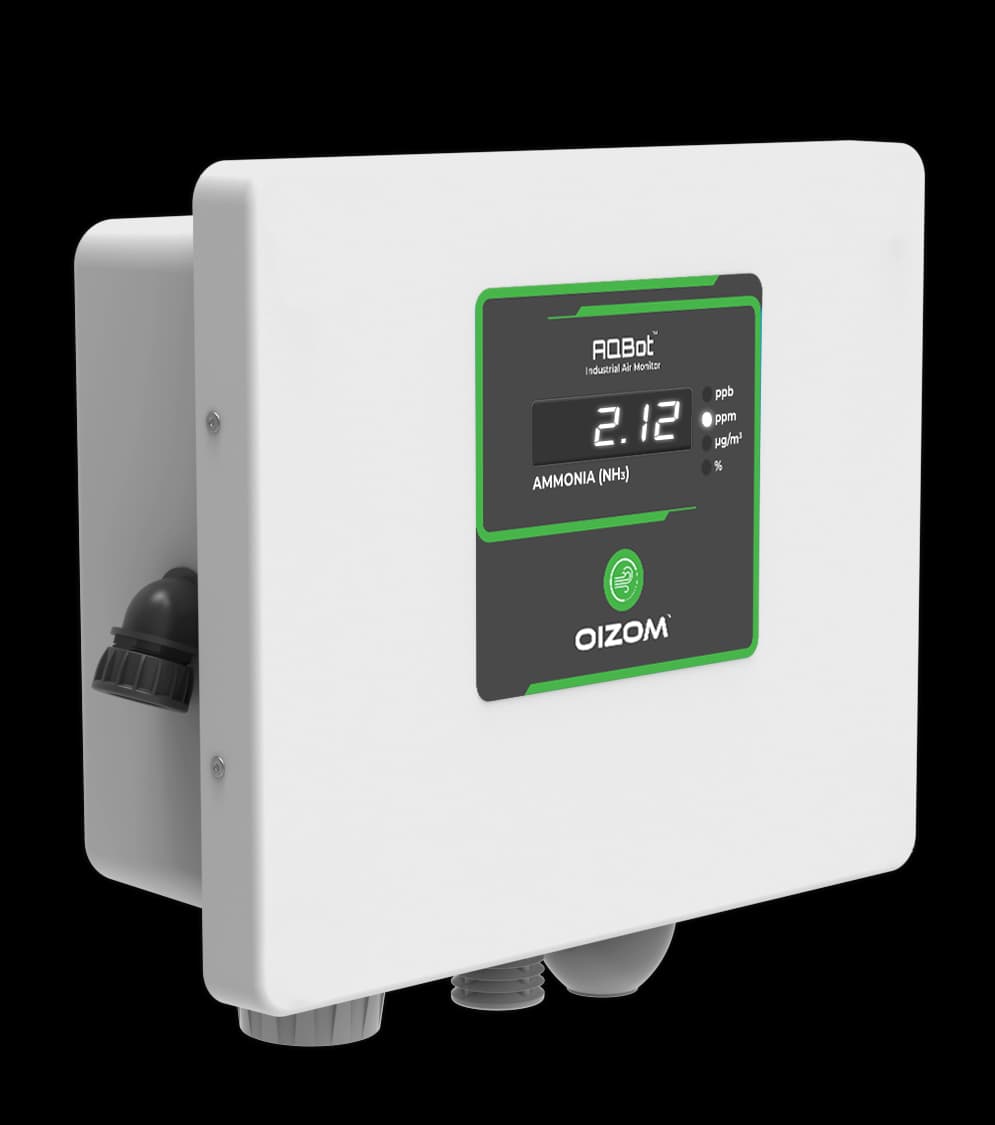

AQBot NH3 Monitor
Single Point Continuous NH3 Monitor
The AQBot NH3 is a robust NH3 Gas Monitor that can measure ammonia levels in the air. This NH3 gas detector uses electrochemical sensing technology to measure ammonia concentration in the air. The industrial ammonia monitor is equipped with an electrochemical sensor. This sensor module is enclosed in the IP65 rugged composite enclosure to protect from harsh weather.
The AQBot enclosure is NEMA 4X approved to last-long in the harsh industrial environment. It comes with an on-device display to check the concentration of the NH3 without being dependent on any external display. This fixed ammonia gas detector comes with an optional on-device alarm siren and strobe-light for quick action in case of any atmospheric hazard. It provides an early warning to potential toxic gas exposure.
The AQBot NH3 monitor can accurately monitor NH3 gas concentrations in real-time. This industrial air quality monitor can integrate relevant NH3 sensor modules as per the application requirement.
This industrial ammonia monitor is lightweight and easy to install on the wall or pole with versatile mounting arrangements. It can easily integrate with existing building monitoring or plant control systems infrastructure.
The electrochemical NH3 sensing module is easy to replace or calibrate by sending the device back to Oizom or our partner facility.
The single-point continuous gas monitoring system AQBOT can communicate over multiple communication protocols. Multiple NH3 monitor networks can receive output signals to a central point after configuration. Also, it has a built-in relay module, through which the user can set up a relevant threshold to trigger the Alarming system. Thresholds for the alarm are customizable from the Air Quality Software, which comes with the AQBot NH3 monitor.
The AQBot NH3 monitor is ideal for continuous monitoring of NH3 emissions. For instance: Agricultural applications, Fertilizer manufacturing, storage, and application Livestock management, Landfills and dump yards, Sewage treatment plant, Wastewater treatment plant, Effluent treatment plant, Coke manufacturing, Manufacturing of cleaning products, Pharmaceutical industries, Industrial hygiene, and safety, and Risk assessment
- Quick sensing for threshold-based alerts
- Highly accurate data to detect low ppb concentrations
- Robust built to sustain harsh industrial conditions
- Easy data integrations to match industry standards
- Effortless installations with versatile mounting arrangement
- Data transmissions through multiple channels
- Inbuilt relay operation for automation
- Real-time data display for keeping a check
- Optional siren & strobe for audio & visual alerts
- On Device Display: Built-in display module to check the on-site concentration
- Ultimate Durability: NEMA Certified industrial-grade enclosure made of high-grade engineering composite polymers
- Weatherproof: IP65 grade enclosure for endurance against harsh environmental conditions
- Accurate measurement: Accurate NH3 gas measurement with electrochemical sensing technology
- Compact: Light-weight and the compact system can be easily installed on any wall, pole, or structure
- Real-Time Data: Continuous monitoring and real-time data transfer at configurable intervals
- Built-in Relay: Built-in relay for better process automation
- Wired Communications: Supports all industry-standard output signals like Modbus, Canbus, RS-485, RS-283
- Wireless Communications: Supports a wide range of wireless connectivity options like GSM / WiFi / LoRa / NBIoT
- Over-The-Air Update: Automatically upgradeable from a central server without any onsite visit (available for wireless connectivity)
Strobe
Siren
Our sensing technology in the AQBot NH3 monitor works on proven working principle of electrochemical sensing that operates based on the diffusion of NH3 gas into the sensor which results in the production of an electrical signal proportional to the NH3 concentration. It allows accurate and reliable measurement of even low concentrations of ammonia, which is essential in NH3 monitoring in the ambient air.
- MODBUS: RS283 and RS485 based industrial grade communication
- Ethernet: Wired local area network deployment capability for secure data transfer
- GSM/GPRS: Second-generation digital cellular network for global coverage
- LoRa: Low Range, Low Power consumption transmission in sub-gigahertz radio frequency bands like 433 MHZ, 868 Mhz & 915 Mhz.
- Sigfox: Wide-reach & ultra-narrowband transmission for extensive area coverage with up to 140 uplink messages a day, 12 octet payload, and 100 bytes/second data rate.
- LTE: Standard wireless broadband communication for mobile devices and data terminals
- NB-IoT: High connection density capability with single Narrow-Band of 200kHz and enhanced Machine-Type communication LTE.
WiFi: Wireless Local Area network deployment functionality based on the IEEE 802.11 standard.
If the AQBot NH3 is connected to Oizom cloud, the data is also available in the Air Quality Software. The platform has essential features like
NH3 Data Overview
Micro-analysis Dashboard
Historical Data Analytics
NH3 Report
Smart Alerts
Historical Data-set Download
