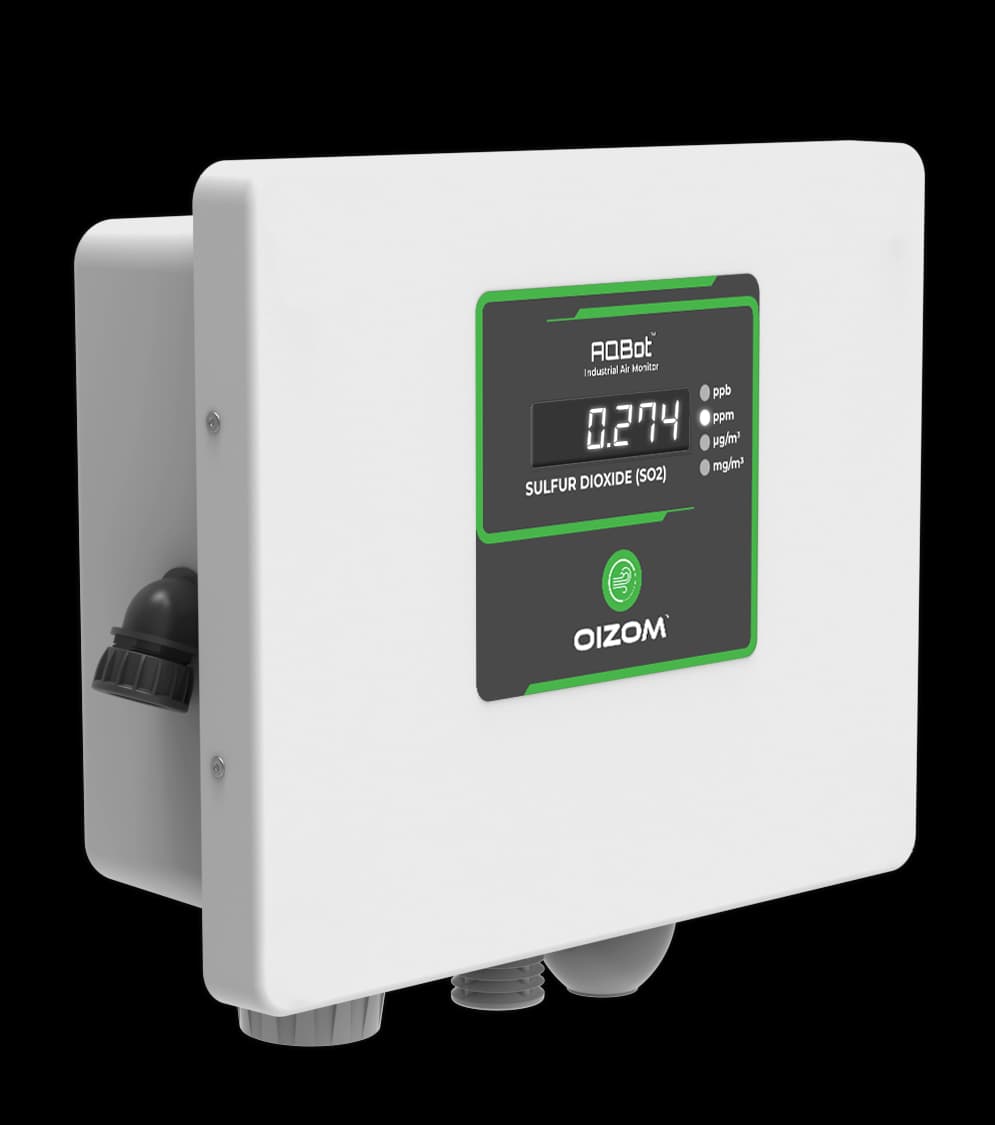

AQBot SO2 Air Quality Monitor
Single Point Continuous SO2 Monitor
The AQBot SO2 is a robust SO2 air quality monitor that can measure Sulfur Dioxide parameters in the air. This SO2 gas detector uses Electrochemical Sensing technology to measure the total SO2 in the air. The monitor is equipped with an SO2 sensor module. The sensor module is enclosed in the IP65 rugged composite enclosure to protect it from harsh weather.
The gas detector enclosure is NEMA 4X approved to last long in harsh industrial environments. It comes with an on-device display to check the concentration of the SO2 without being dependent on any external display. This fixed gas detector comes with an optional on-device Alarm siren and strobe-light for quick action in case of any atmospheric hazard. It provides an early warning of potentially toxic gas exposure.
The AQBot SO2 air quality monitor can accurately monitor SO2 gas concentrations in real time. This device can integrate relevant SO2 modules as per the application requirement.
The fixed SO2 monitor is lightweight and easy to install on the wall or pole with versatile mounting arrangements. It can easily integrate with existing building monitoring or plant control systems infrastructure.
The SO2 module is easy to replace or calibrate by sending the device back to Oizom or our partner facility. The AQBot is designed for easy and inexpensive maintenance.
The single-point continuous gas monitoring system AQBOT can communicate over multiple communication protocols. Multiple SO2 monitor networks can receive output signals to a central point after configuration. Also, it has a built-in relay module, through which the user can set up a relevant threshold to trigger the Alarming system. Thresholds for the alarm are customizable from the Air Quality Software, which comes with AQBot SO2 monitor.
The AQBot SO2 monitor is ideal for continuous monitoring of SO2 emissions. For instance:
Manufacturing and processing, Refining, Petrochemical, Chemical, Pharmaceutical, Pulp and paper, Industrial painting and coating, Solvent recovery, Disinfection, Wastewater treatment plant, Effluent treatment plant, Industrial hygiene, and safety, Risk assessment
- Quick sensing for threshold-based alerts
- Highly accurate data to detect low ppb concentrations
- Robust built to sustain harsh industrial conditions
- Easy data integrations to match industry standards
- Effortless installations with versatile mounting arrangement
- Data transmissions through multiple channels
- Inbuilt relay operation for automation
- Real-time data display for keeping a check
- Optional siren & strobe for audio & visual alerts
- On Device Display: Built-in display module to check on-site concentration
- Ultimate Durability: NEMA Certified industrial-grade enclosure made of high-grade engineering composite polymers
- Weatherproof: IP65 grade enclosure for endurance against harsh environmental conditions
- Accurate measurement: Accurate Nitric Oxide gas measurement with Electrochemical sensing technology
- Compact: Light-weight and the compact system can be easily installed on any wall, pole, or structure
- Real-Time Data: Continuous monitoring and real-time data transfer at configurable intervals
- Built-in Relay: Built-in relay for better process automation
- Wired Communications: Supports all industry-standard output signals like Modbus, Canbus, RS-485, RS-283
- Wireless Communications: Supports a wide range of wireless connectivity options like GSM / WiFi / LoRa / NBIoT
- Over-The-Air Update: Automatically upgradeable from a central server without any onsite visit (available for wireless connectivity)
Strobe
Siren
The sulfur dioxide sensor module works on the electrochemical principle. It works based on the diffusion of SO2 gas into the sensor which results in the production of an electrical signal proportional to the SO2 concentration. It allows accurate and reliable measurement of even low concentrations of Sulfur dioxide, which is essential in Sulfur dioxide monitoring in the ambient air.
MODBUS: RS283 and RS485 based industrial grade communication
Ethernet: Wired local area network deployment capability for secure data transfer
GSM/GPRS: Second-generation digital cellular network for global coverage
Lora: Low Range, Low Power consumption transmission in sub-gigahertz radio frequency bands like 433 MHZ, 868 Mhz & 915 Mhz.
Sigfox: Wide-reach & ultra-narrowband transmission for extensive area coverage with up to 140 uplink messages a day, 12 octet payload, and 100 bytes/second data rate.
LTE: Standard wireless broadband communication for mobile devices and data terminals
NB-IoT: High connection density capability with single Narrow-Band of 200kHz and enhanced Machine-Type communication LTE.
WiFi: Wireless Local Area network deployment functionality based on the IEEE 802.11 standard.
If the AQBot SO2 is connected to the Oizom cloud, the data is also available in the Air Quality Software. The platform has essential features like
SO2 Data Overview
Micro-analysis Dashboard
Historical Data Analytics
SO2 Report
Smart Alerts
Historical Data-set Download
Product Applications
Do you know you can fully customize your air quality monitoring system with Oizom?
Schedule a call with our team of experts and get a customised solution for your air quality monitoring requirement.
